$329.99 In Stock Temporarily Out of Stock
Finish
46087898628339 46735828025587 46735828058355
PART NUMBER: 128051900 GTIN: 840171229585

Features

  • High-strength, durable A356.0-T6 aluminum alloy
  • Precision cast using permanent steel molds
  • 1.5 quarts additional fluid capacity
  • External fins improve heat dissipation, lower transmission fluid temps, and increase strength
  • Internal baffles increase heat dissipation and reduce fluid sloshing
  • High-temperature rated Neodymium magnet equipped, 304 stainless steel drain plug with Viton O-ring
  • Built-in filter supports ensure proper filter placement
  • New transmission filter and gasket included

FREE SHIPPING FOR ORDERS OVER $100

30-DAY RETURNS

  • Description
  • Compatible Vehicles
  • Downloads

GM 6L90 Cast Aluminum Transmission Pan, Heavy-Duty

Elevate Your Vehicle's Performance with the PPE 6L90 Heavy-Duty Cast Aluminum Deep Transmission Pan.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE Transmission Pan offers far superior impact and warping resistance compared to the factory stamped pan. Its robust construction ensures long-lasting protection and performance. The deep external cooling fins maximize the heat-wicking surface area and keep your transmission cool under pressure.

The built-in baffles at the bottom of the pan increase the contact area between the fluid and the cast surface, enhancing its heat transfer capabilities. These baffles also minimize fluid sloshing, ensuring uninterrupted fluid pickup and stable transmission performance.

The PPE Pan’s billet stainless steel drain plug is equipped with a powerful neodymium magnet that captures ferrous particles, providing additional protection for your transmission. The fluid level check port is positioned at the stock height to ensure proper fluid level. Each pan includes a new deep transmission filter and a flat gasket.

Keep your GM 6L90 transmission running longer, healthier, and cooler with PPE.

Check your vehicle for clearance issues with the exhaust, drive shaft, and frame cross members. For filter replacement, use PPE Transmission Filter SKU 128058900.

GM Equivalent Transmission Pan P/Ns: 24248164, 24226851, 24297102 (replaces 24248164)

GM Equivalent Transmission Filter P/Ns: 24236933, 24258269

GM Equivalent Transmission Pan Gasket P/Ns: 24226850

Files
PPE PDF Download file
Install Guide
PPE PDF Download file
Drawings
PPE PDF Download file

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jerry l.
Excellent quality

Very impressed overall, outstanding quality and fit, excellent instructions included all needed hardware plus filter and gasket. Would absolutely recommend.

D
Dave
Awesome pan!

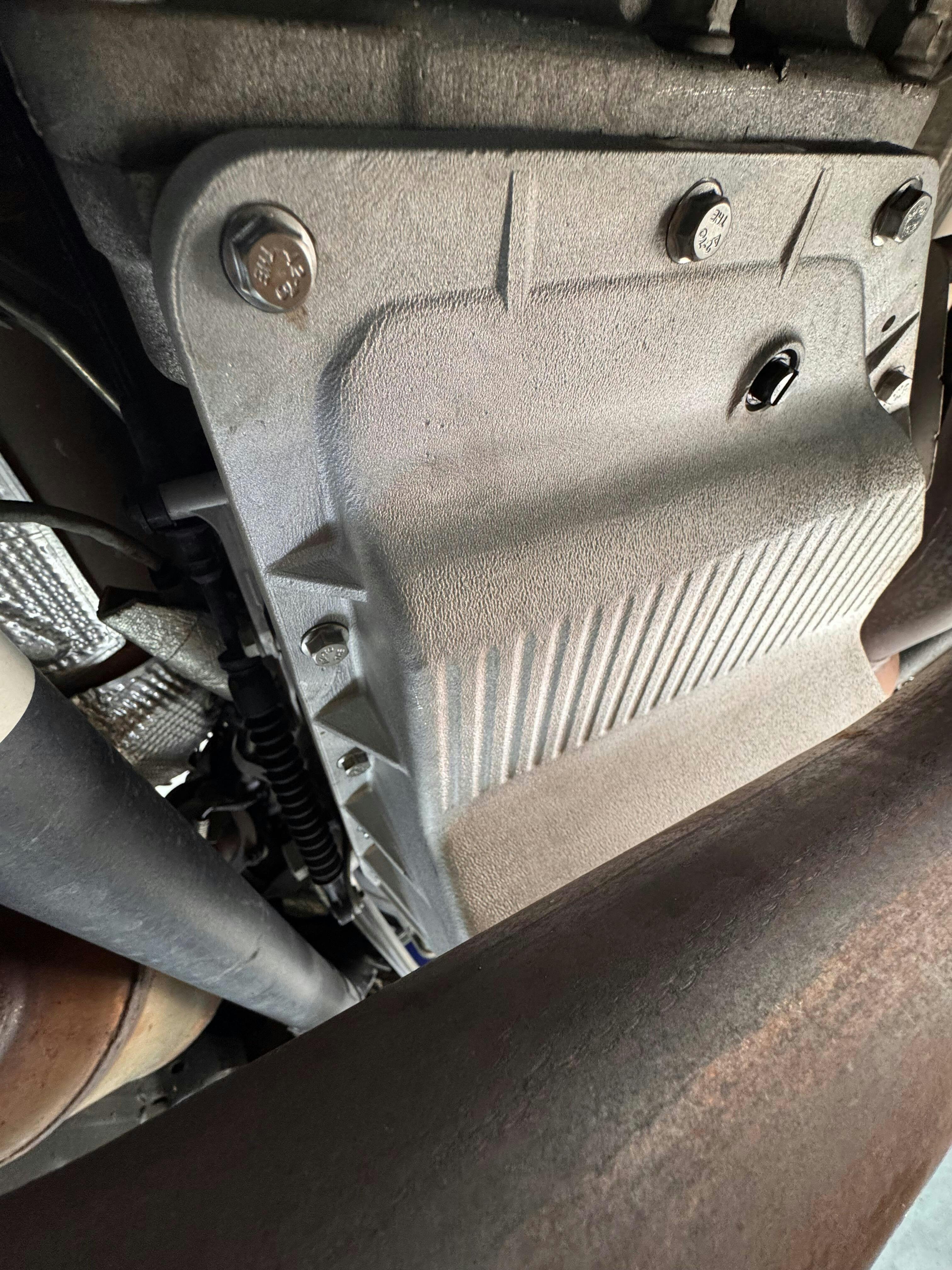

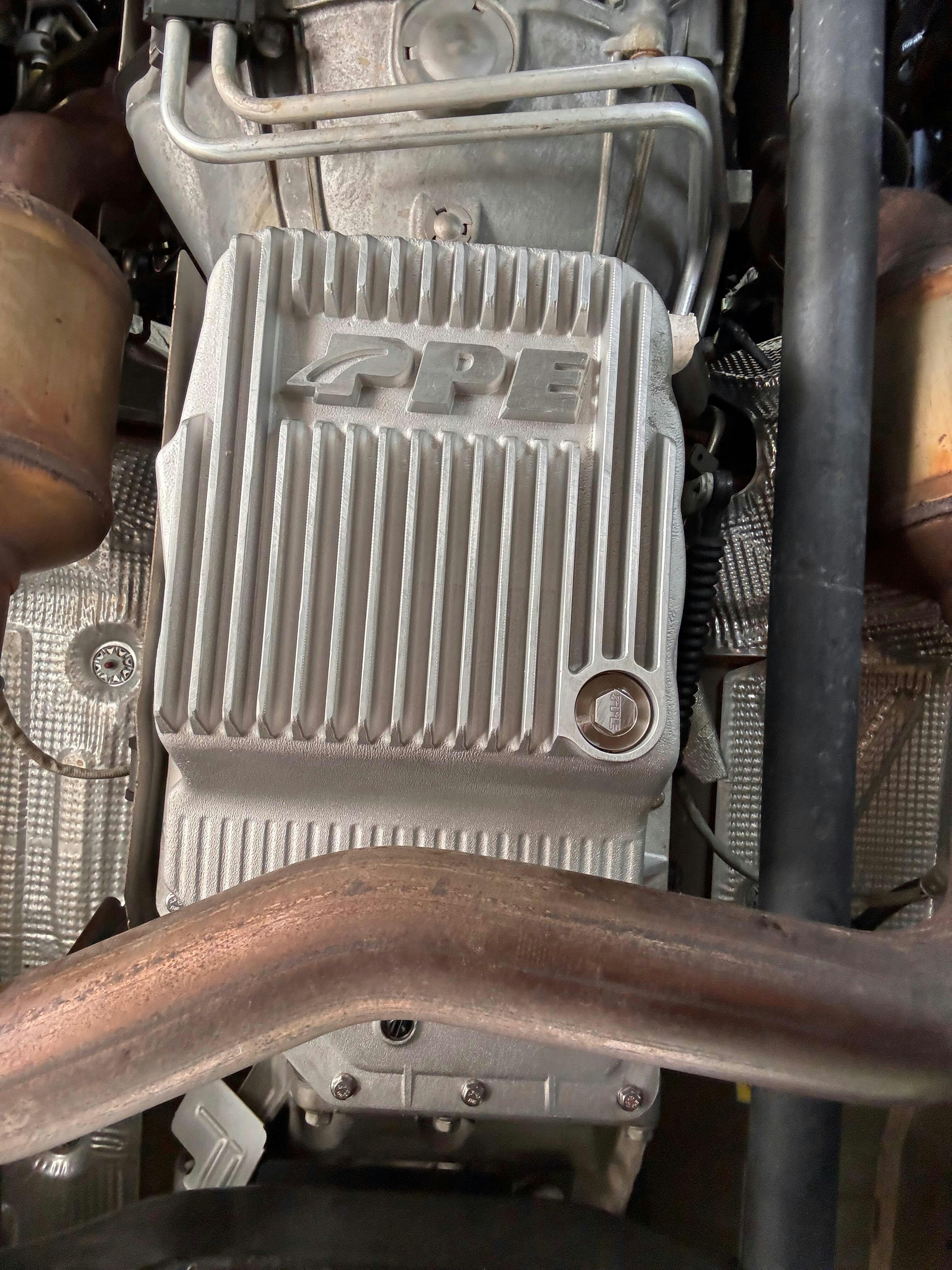

I finally got a chance to install my pan today. The pan is extremely well made. The filter that comes with it looks exactly like a genuine AC Delco filter that I had on hand already, enough so that I’m pretty sure they come out of the same factory.

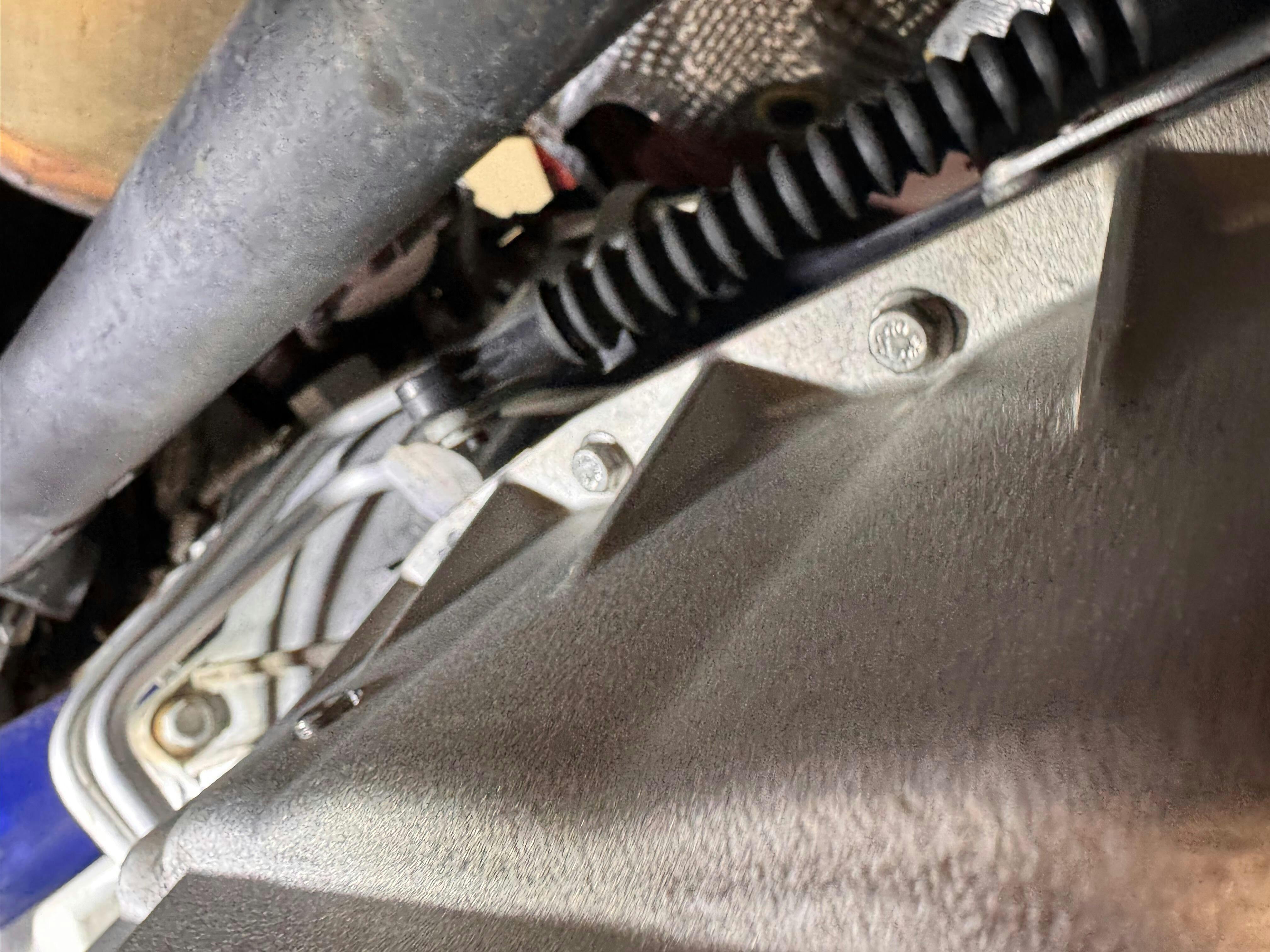

I had plenty of room to get the original GM bolts out of my OEM pan and maneuver it around the exhaust. The problem I ran into was with the allen bolts that come with the new pan. Getting my 4mm 3/8 drive allen socket into a position for 3 of the 18 bolts when attached to the torque wrench to snug the bolts down to 9ft pounds was pretty much impossible with the exhaust crossover. If I had a 1/4 drive socket and torque wrench it probably wouldn’t be an issue, I could have used a u-joint adapter, or I could have just guessed at the torque using a standard ratchet because 9 pounds isn't very much. I’m not a fan of using U-joints when torquing anything and I wanted to make sure I did this right the first time.

What I ended up doing was getting 18 stainless steel non serrated flange head M6x20mm bolts. The flange head eliminates the need for a washer and using non-serrated meant they wouldn’t chew up the aluminum.

J
J. J.
Way better than the original.

This pan is a solid piece of high quality aluminum. The attention to detail in craftsmanship can easily be seen on this ppe product, I am very impressed and happy with this product and purchase. Ordering online is easy from PPE and Shipping was great, box arrived in great condition , it was well packaged. 100% satisfaction.
