2017-2020 FORD w/ 10R80 Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan Pacific Performance Engineering

2017-2020 FORD w/ 10R80 Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan

2017-2020 FORD w/ 10R80 Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan

Name: 2017-2020 FORD w/ 10R80 Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan
Brand: Pacific Performance Engineering
SKU: 328053110
Price: 319.99 USD
Availability: OutOfStock

$339.99 In Stock Temporarily Out of Stock

PART NUMBER: 328053110 GTIN: 840171212211

Features:

High-grade A356.0-T6 heat-treated cast aluminum alloy
Increases fluid capacity by 1 3/4 quarts
Permanent replacement for "throwaway" stock plastic pan
3/4-inch external cooling fins reduce fluid temperature
Large 1-inch Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring
1/8-inch NPT port for optional temperature probe
Reuses OEM gasket, bolts, and studs
Limited lifetime warranty

FREE SHIPPING FOR ORDERS OVER $100

LIFETIME LIMITED WARRANTY

30-DAY RETURNS

Description
Compatible Vehicles
Downloads
Related Videos
Reviews

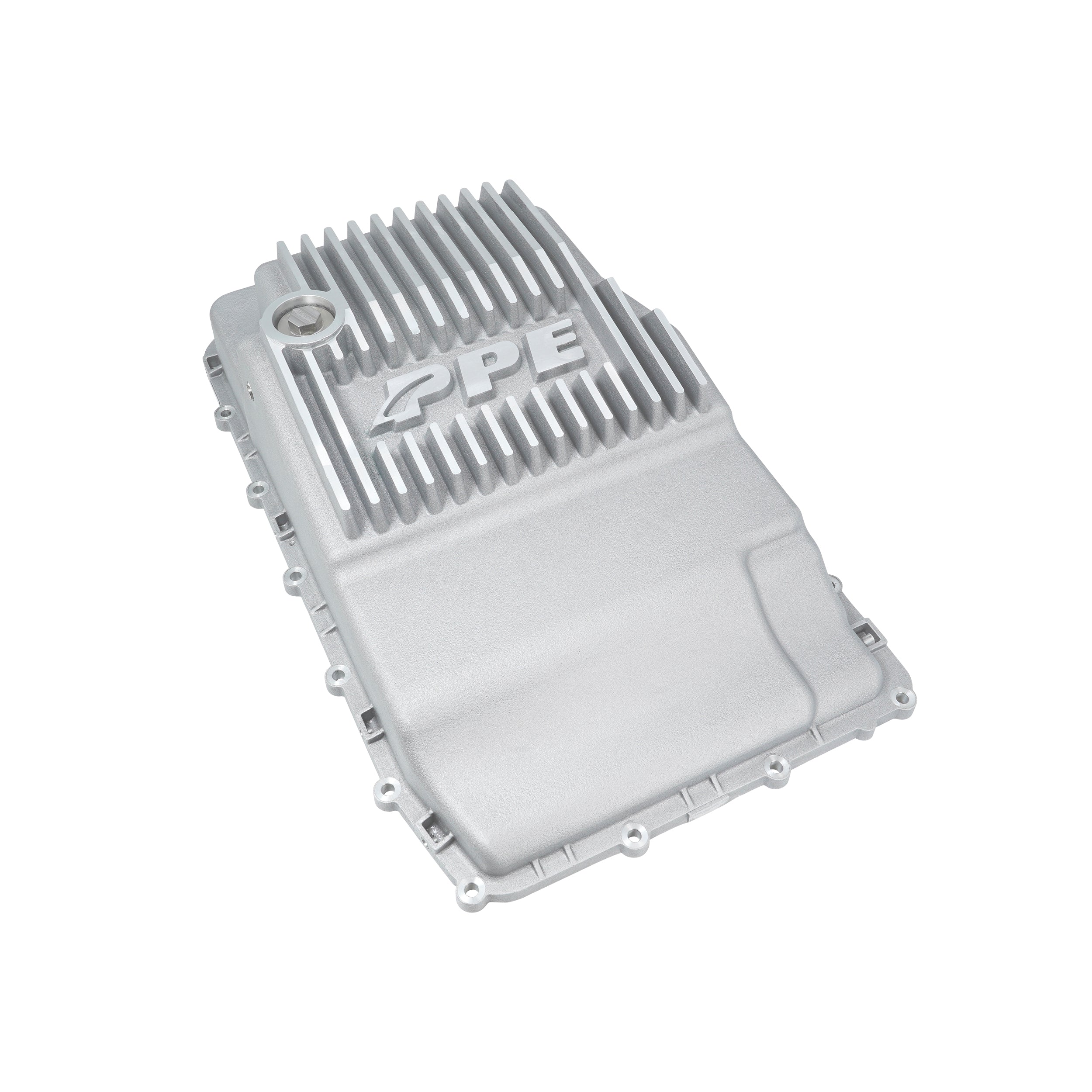

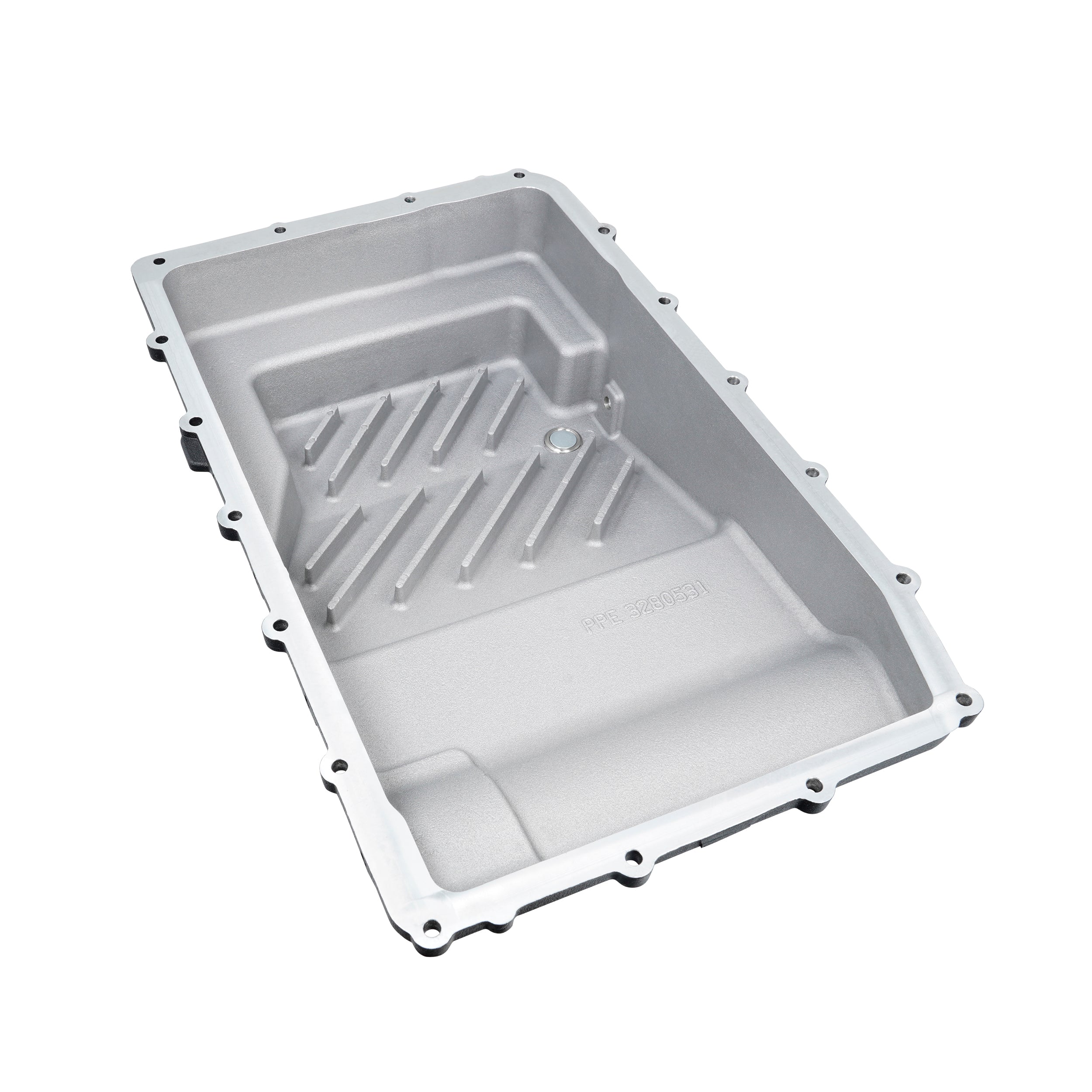

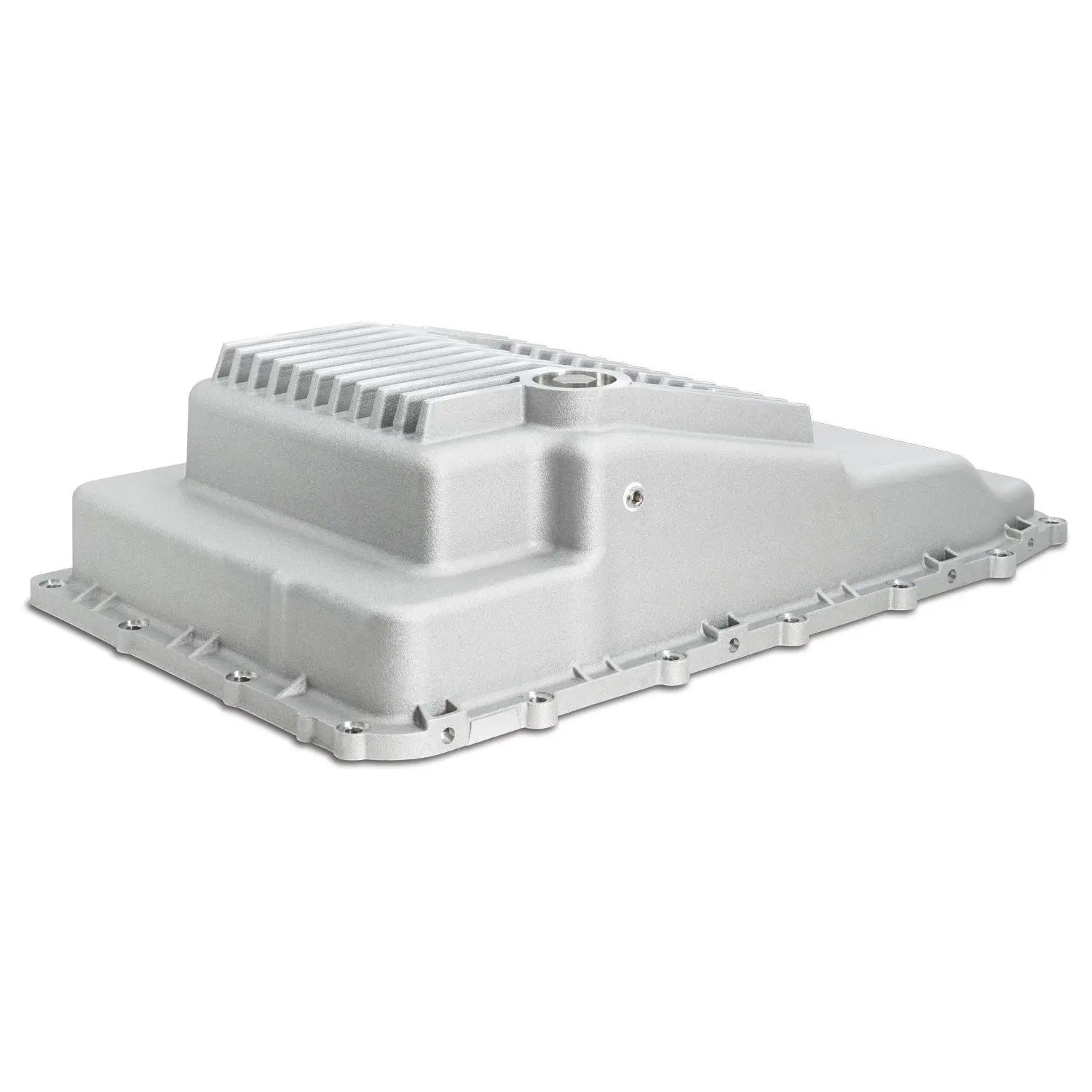

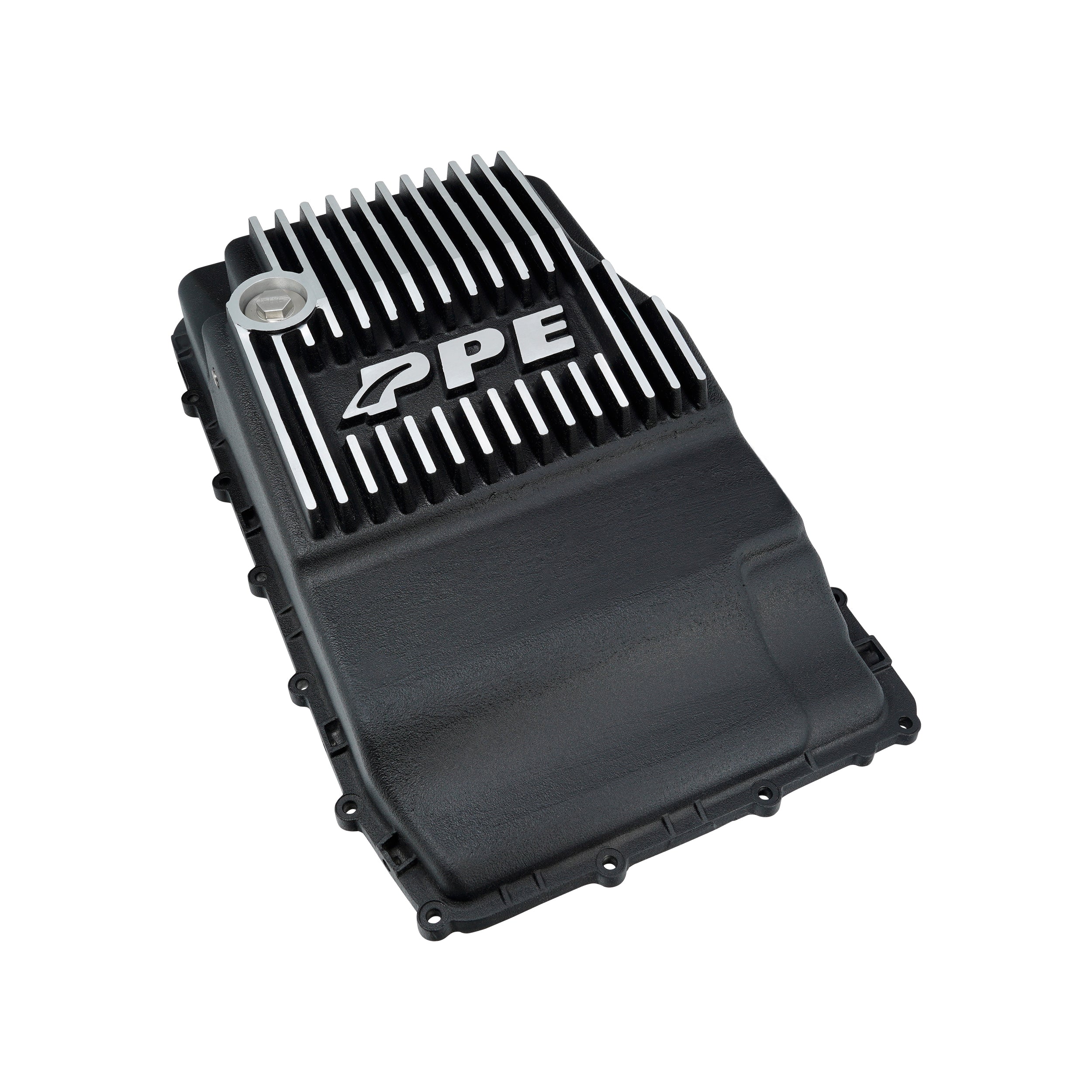

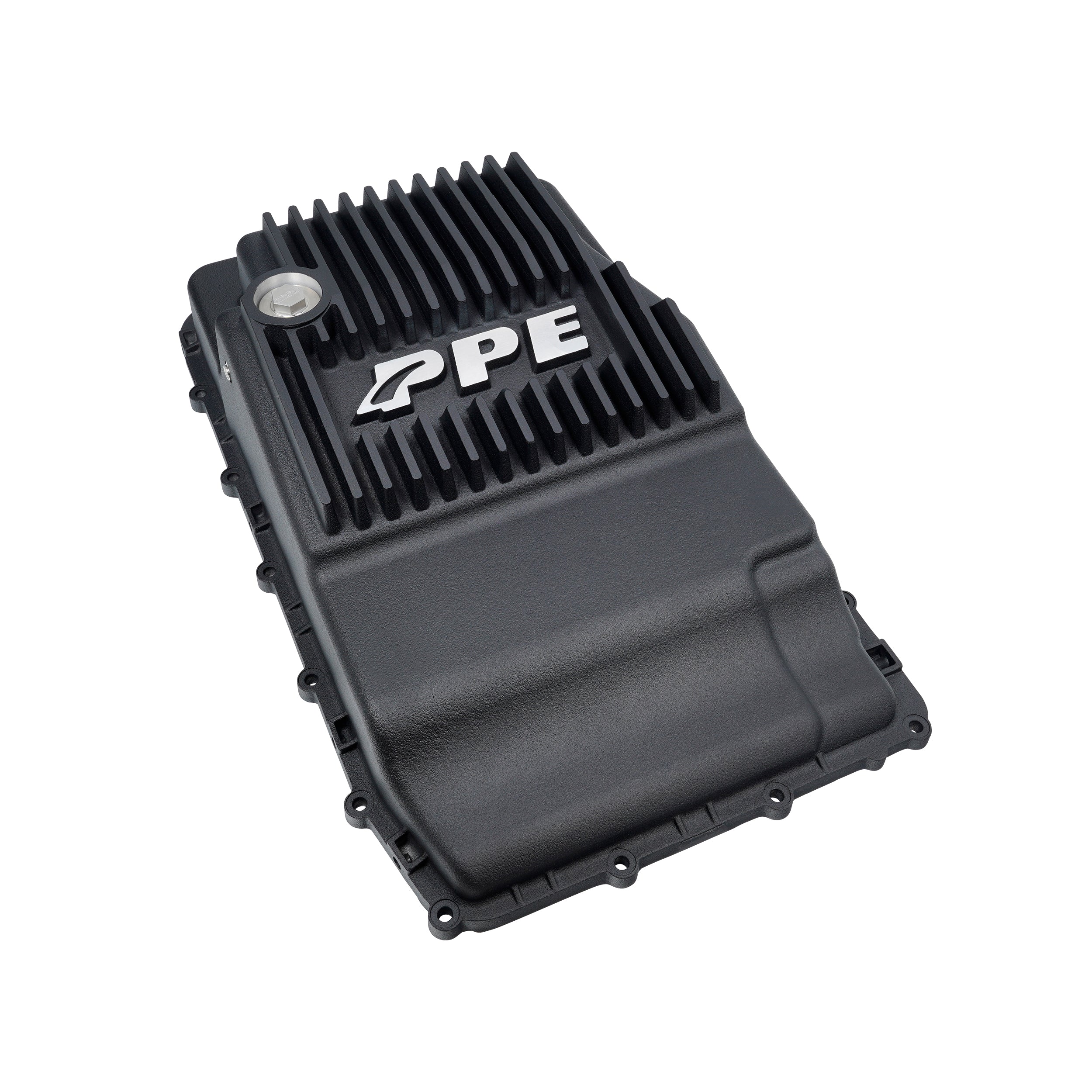

F150 Cast Aluminum Deep Transmission Pan

Ford's 10R80 transmission is revolutionary. This 10-speed power manager can go from street to strip with a flick of a button on some vehicle applications. All this available power generates more heat. Even daily light-to-light commutes create high heat. High heat destroys transmission internals and scorches fluid. Each of these contributes to reduced performance and transmission life.

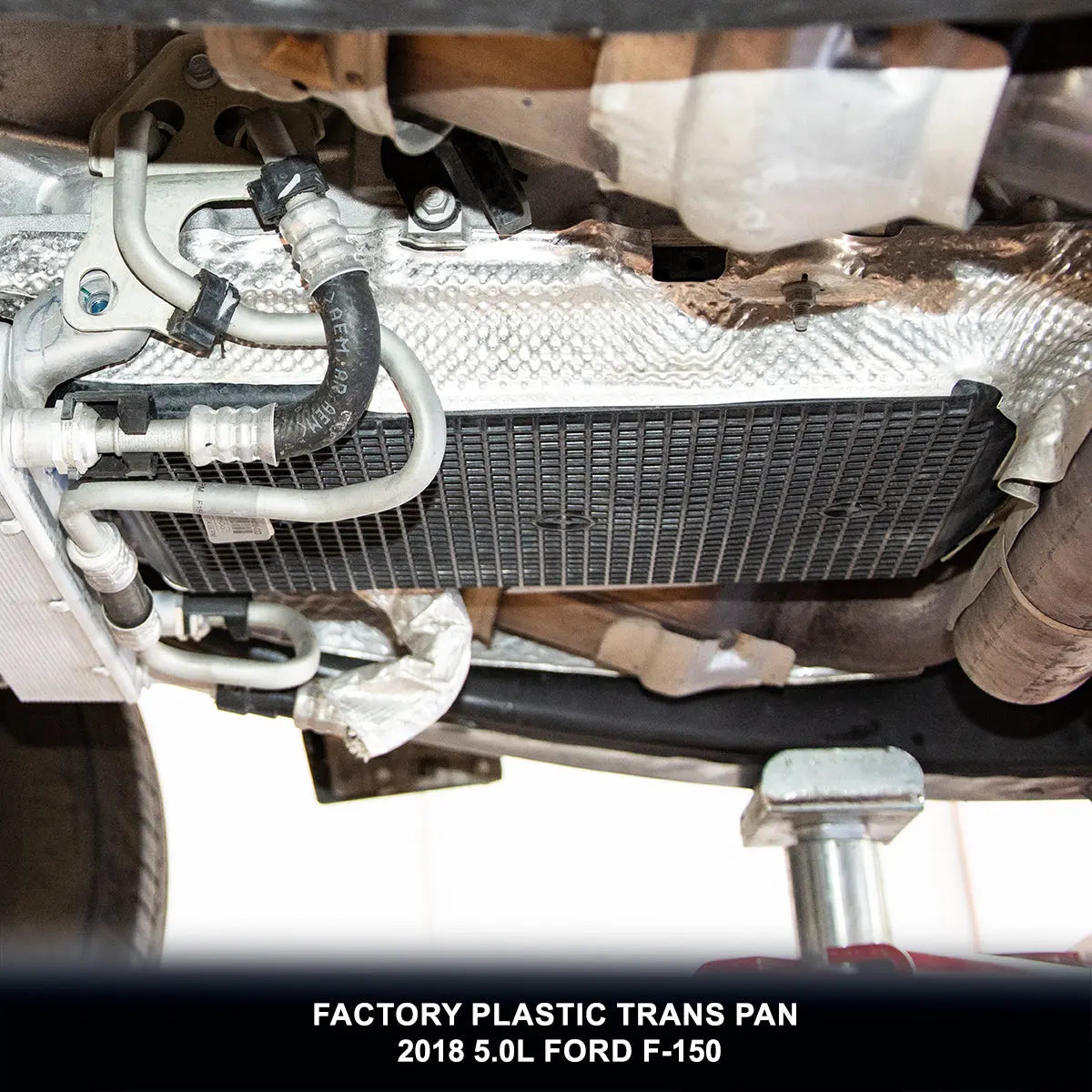

PPE's cast aluminum pan provides superior cooling over the stock plastic pan. The stock plastic pan has no drain plug and is discarded each transmission service. The PPE Pan's cast-aluminum construction with exterior fins transfers heat away from transmission internals. Lower transmission fluid temperatures extend transmission life. The benefits of the PPE Pan also include easier fluid services. Simply drain, plug and refill. No more trans fluid showers.

The PPE Heavy-Duty 10R80 Transmission Pan also features our high-power Neodymium magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

Note: Reduces ground clearance by 2 Inches on Mustang Applications.

OEM Part Number for Reference: Ford HL3Z7A194C

Great product, absoultely worth the money!!!

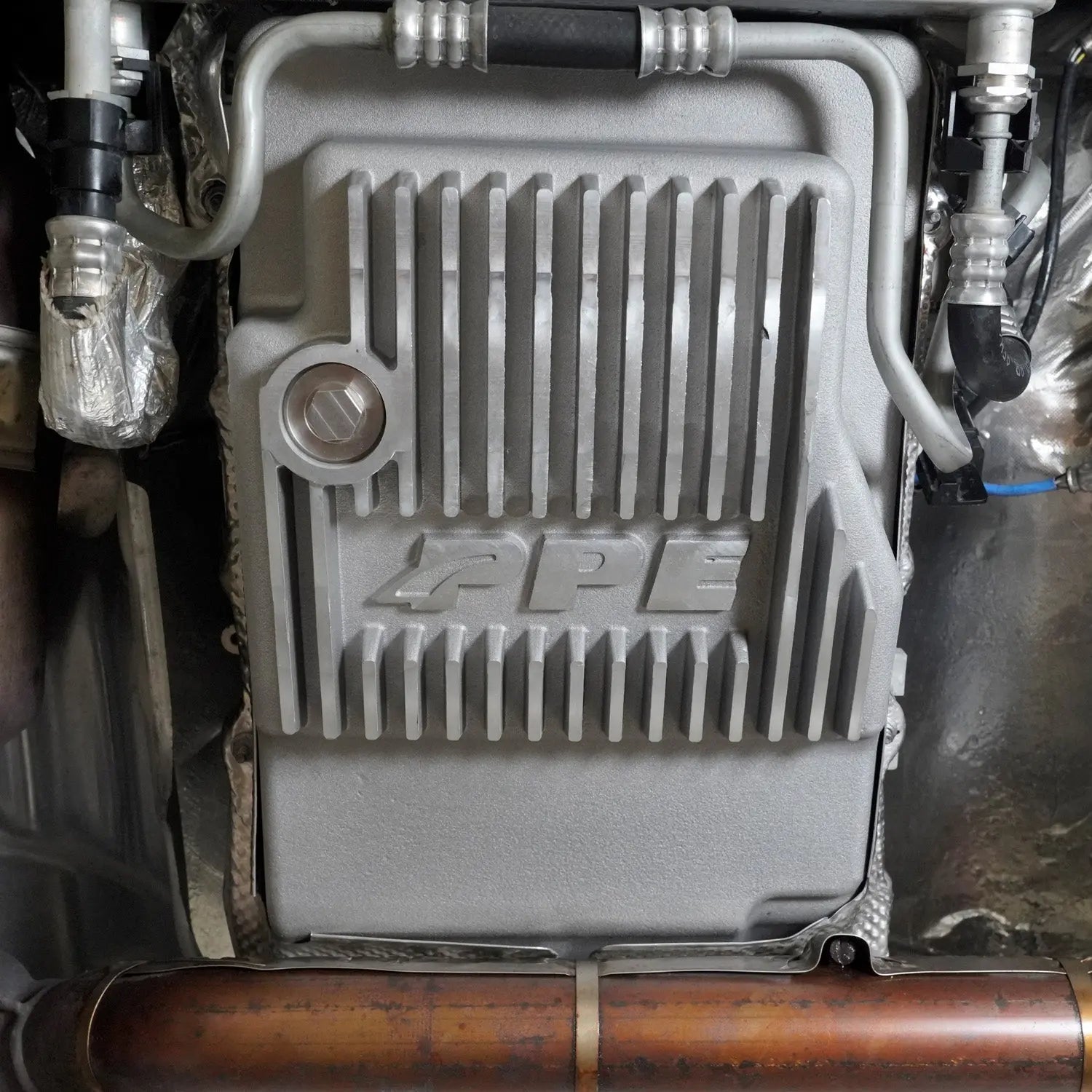

I have a 2018 F150, and was suprised at the amount of work involved with trying to change the transmission fluid on this vehicle. There is no drain plug on the stock transmission pan, so I decided to invest in the PPE cast aluminum pan because it offered the drain plug. Believe me, after going thru the process to get the stock trans pan off, you never want to do it again, and swapping the stock pan for the PPE version is going to pay off big time for future transmission fluid changes.

It took me 1.5 days of wrenching to remove the sway bar, the transmission cooler, and unbolt the rear transmission mounts to jack up the transmission an inch at the back to allow for the stock pan to slide down and forward clear of the exhaust pipe. Took me a few tries with the loading trigonometry to get the PPE pan in place after changing the filter and reinstalling the stock gasket...but it fit up to the transmission hole pattern like a glove. Took almost 11 quarts of ULV Mercon Trans fluid to get to full fill (note that the PPE pan has a larger capacity than the stock pan, so you should target an initial fill of 8-9 quarts vs the 5-6 quarts that you'll see in YouTube videos for the stock pan). Budget for 12 quarts of this special ULV trans fluid, specified for the Ford and GM 10R80 transmissions, and don't count on your local auto parts store to have it in stock...only a few shops carry it...I got lucky. Would suggest ordering it ahead of when you decide to do the pan swap.
