2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan
2007-2024 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan
2007-2024 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering
2007-2024 Ram Pickup 2500 w/ 68RFE Transmission Heavy-Duty Cast Aluminum Transmission Pan - Pacific Performance Engineering

2007-2024 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan

$339.99 In Stock Temporarily Out of Stock
Finish
43838498603251 45642909876467 45642909909235
PART NUMBER: 228052100 GTIN: 840171214840

Features:

  • High-strength, durable A356.0-T6 aluminum alloy
  • Precision cast using permanent steel molds
  • 3 quarts additional fluid capacity
  • External cooling fins enhance heat dissipation and increase impact resistance
  • Internal baffles enhance cooling and reduce fluid sloshing 
  • Billet stainless steel drain plug with built-in high-temp neodymium magnet and Viton O-ring
  • Dual NPT ports (1/8-in and 1/4-in)
  • Triangular gussets add rigidity and provide extra support for transmission case
  • PPE Deep Spin-On Transmission Filter (228052150) included

FREE SHIPPING FOR ORDERS OVER $100

LIFETIME LIMITED WARRANTY

30-DAY RETURNS

N/A

  • Description
  • Compatible Vehicles
  • Downloads

Heavy-Duty Cast Aluminum Transmission Pan

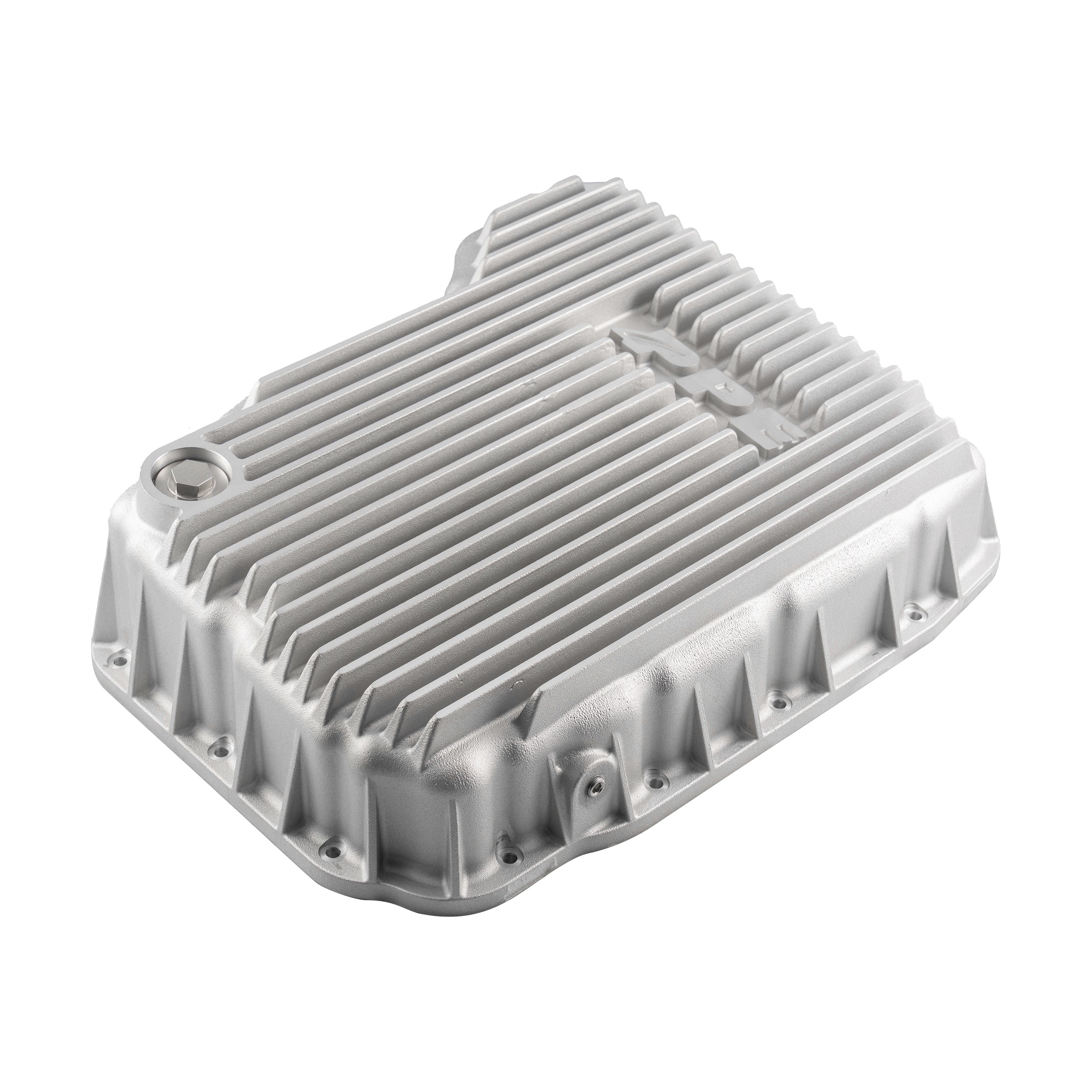

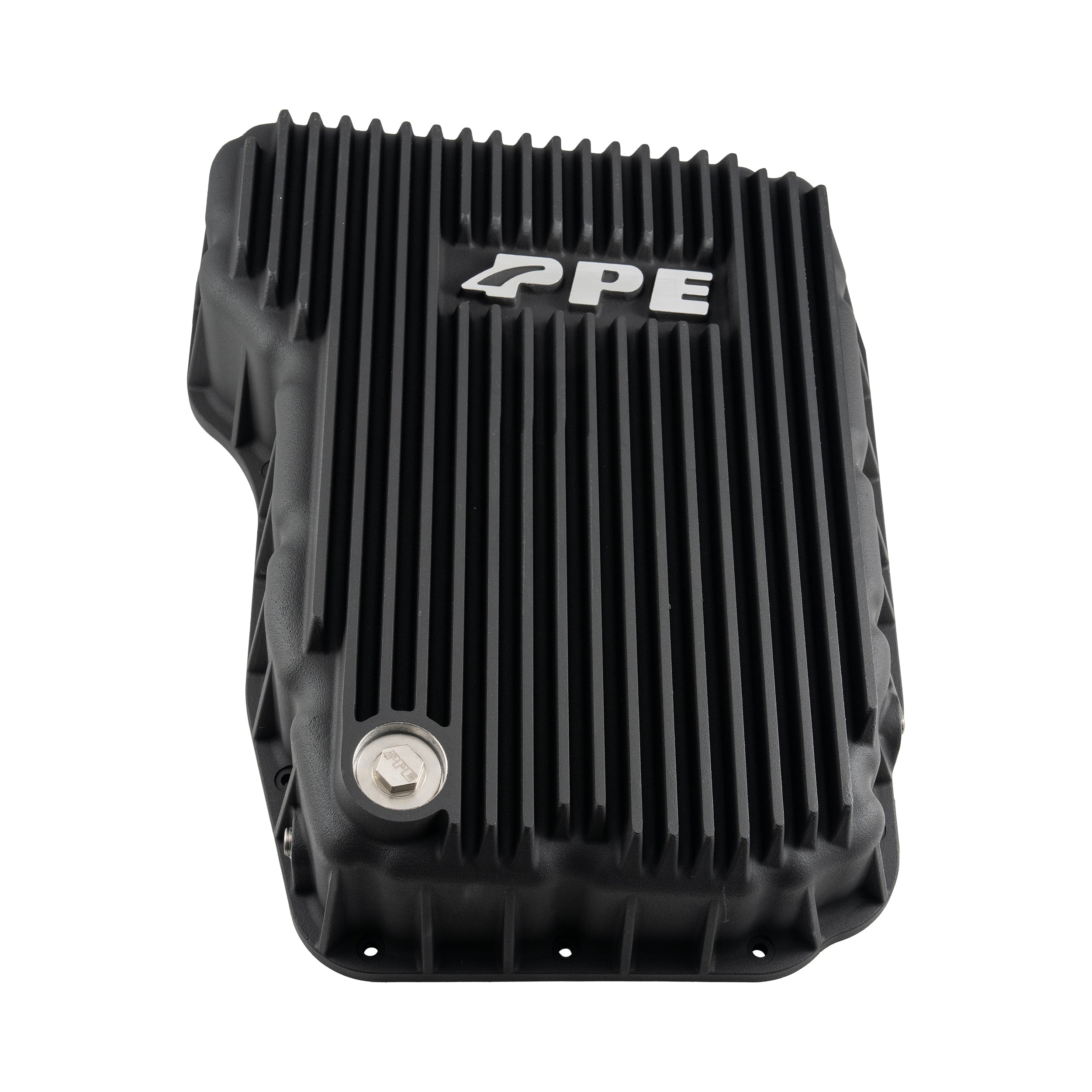

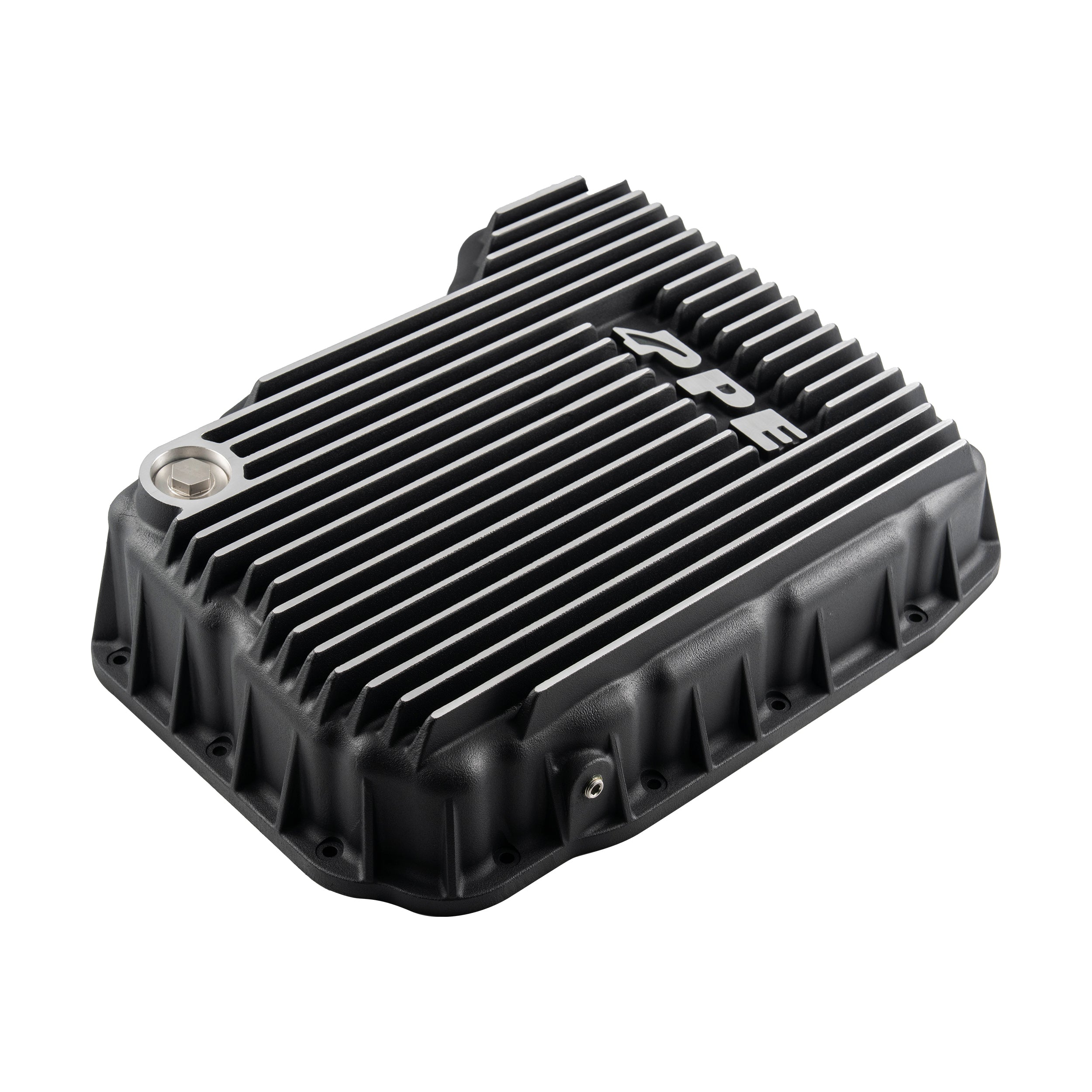

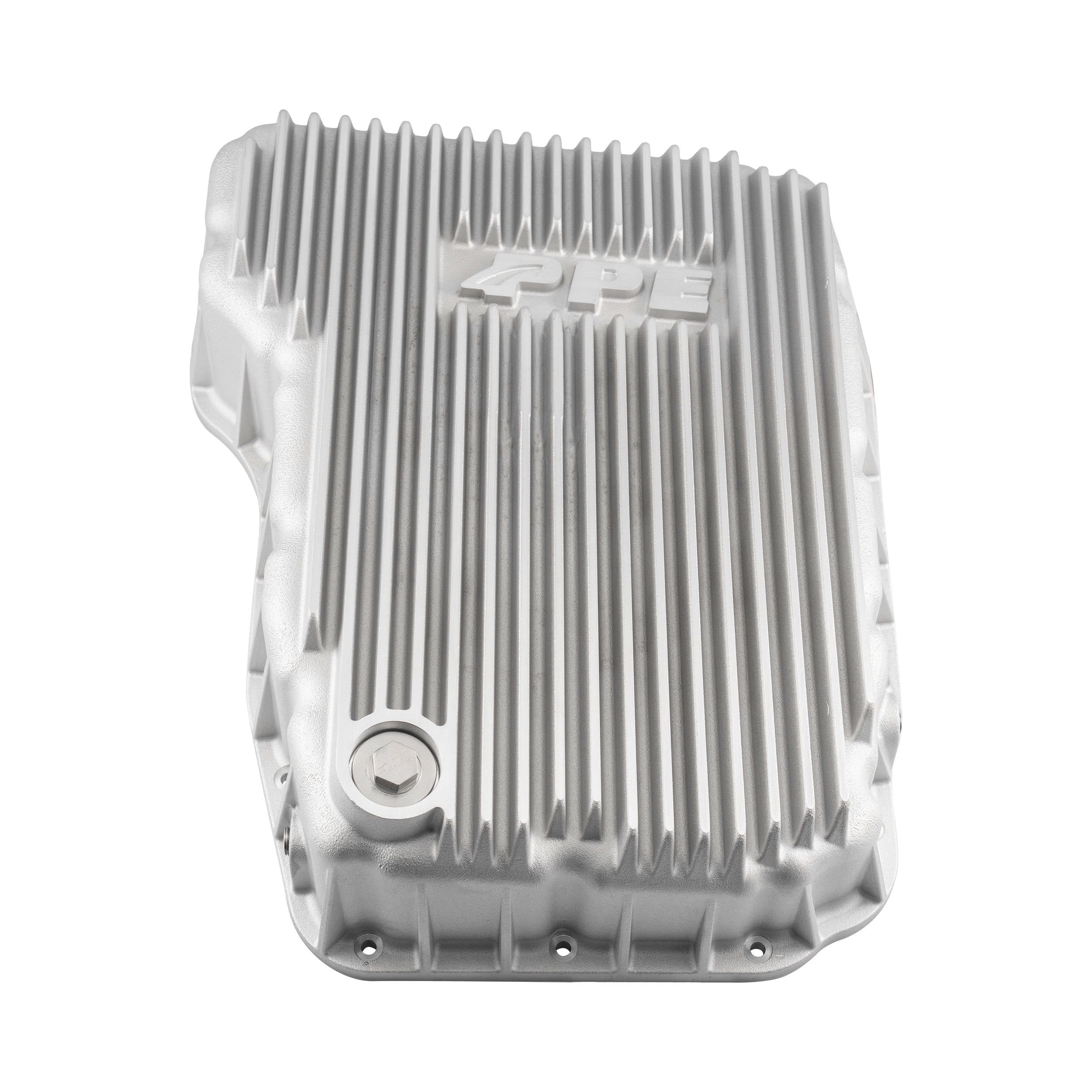

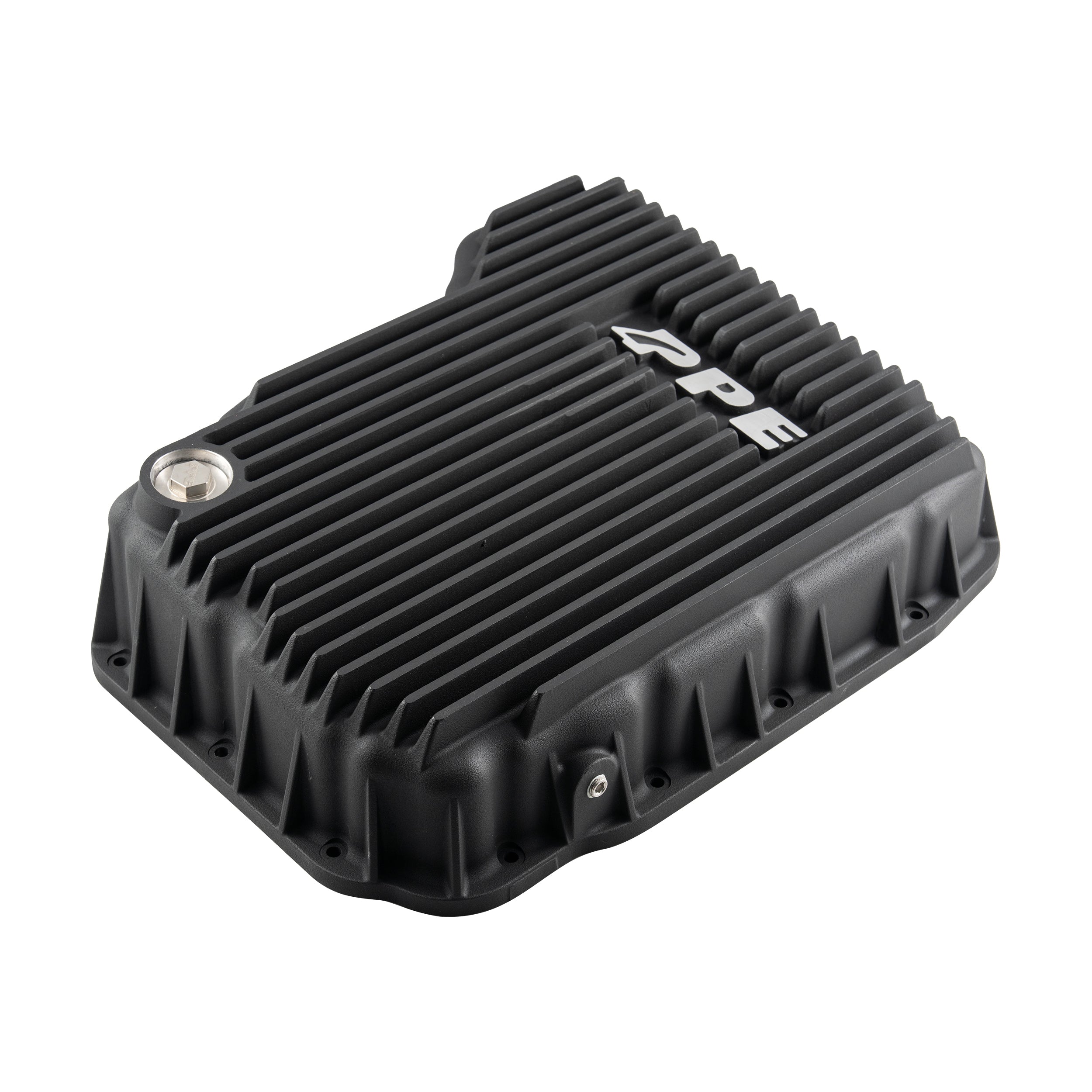

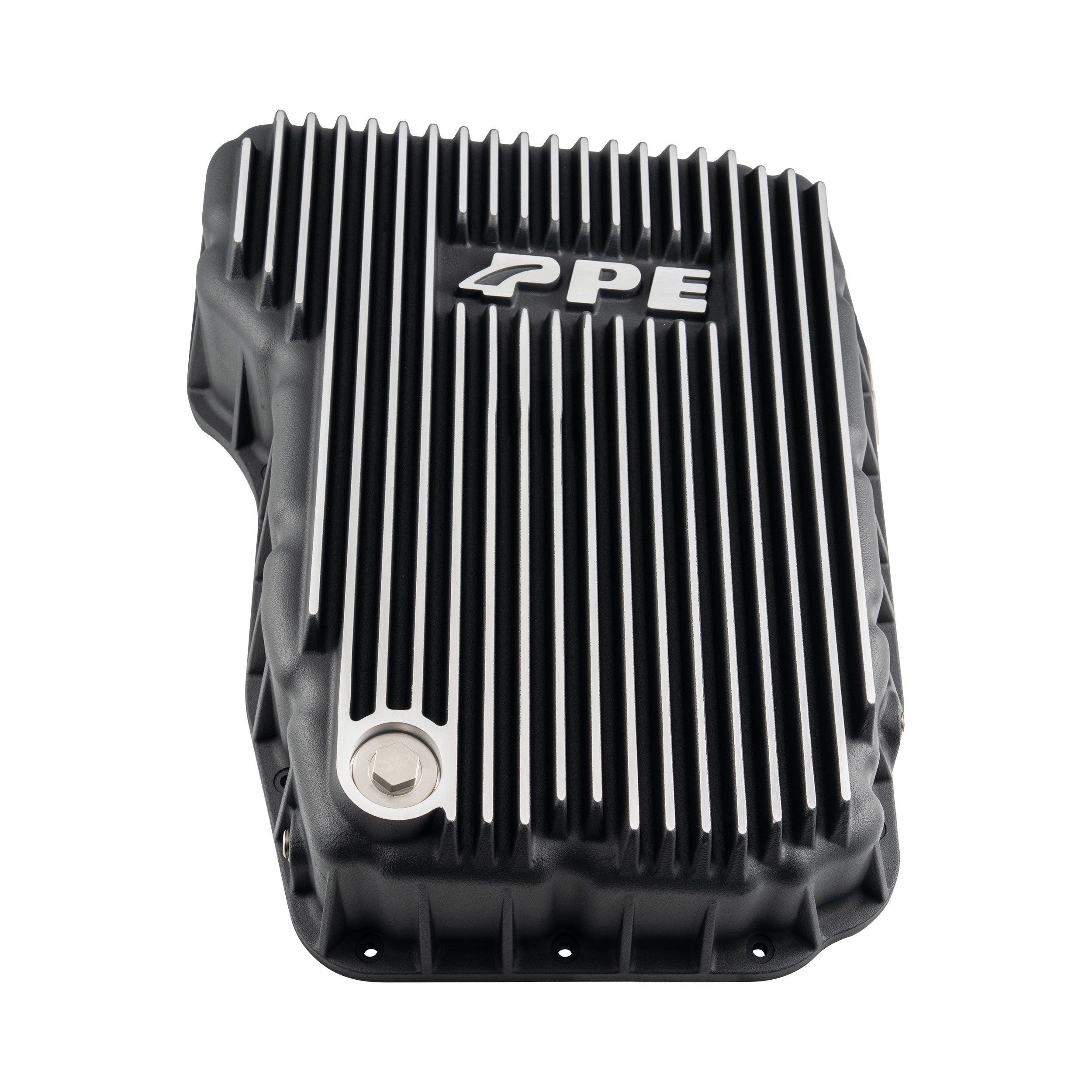

Cast from high-grade A356.0-T6 aluminum alloy, the PPE Transmission Pan offers superior resistance to impact and warping compared to the factory pan. Its robust construction ensures long-lasting protection and performance. The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure.

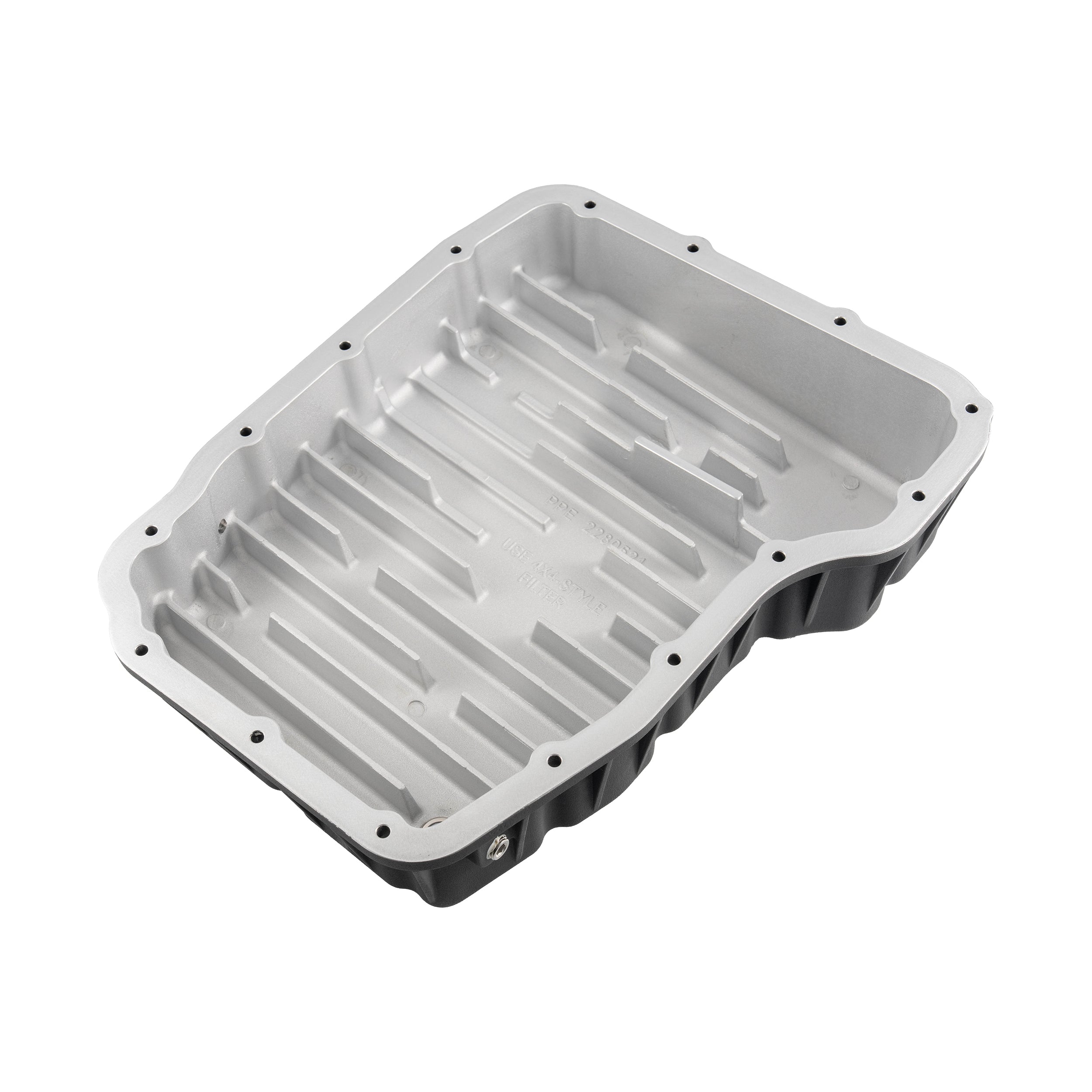

The built-in baffles at the bottom of the pan increase the contact area between the fluid and the pan’s cast surface, enhancing its heat transfer capabilities. These baffles also minimize fluid sloshing, ensuring consistent fluid pickup and stable transmission performance.

The PPE 68RFE Transmission Pan includes a billet stainless steel drain plug with a built-in, high-temperature rated neodymium magnet. This powerful magnet effectively captures ferrous particles, providing additional protection for your transmission. Two NPT ports, 1/8'' and 1/4'', are included to the pan for optional temperature sending units. Each product also comes with a PPE High-Efficiency Deep Spin-On Transmission Filter SKU 228052150, extending your transmission fluid service life.

2007-2025 RAM Cummins Diesel 68RFE Heavy-Duty Cast Aluminum Transmission Pan

Keep your 68RFE transmission running longer, healthier, and cooler with PPE.

OEM P/N for Reference: MOPAR 4736676AA

Note: Some vehicles require the hard lines to be bent in order for the pan to fit. Please refer to the drawings for specs.

Files
PPE PDF Download file
Install Guide
PPE PDF Download file
Drawings
PPE PDF Download file

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dmitry R.
Great Fit For 2021 RAM 2500

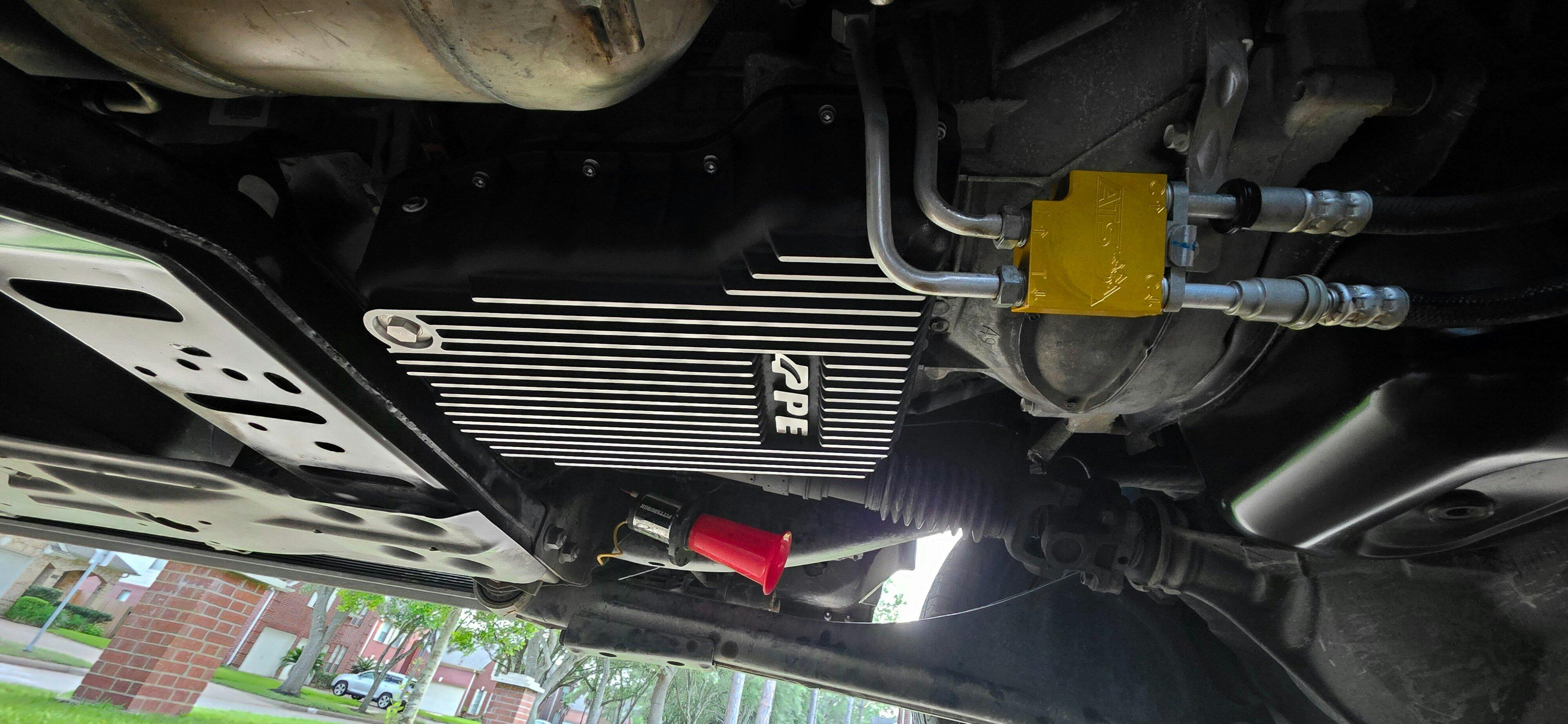

The 68RFE transmission pan for the 5th generation RAM 2500 with Cummins is a must have uprade for every HD RAM driver. The drain plug makes fluid changes less messy and the extra capacity should theoretically extend the life of the fluid. The package contained all the required hardware and PPEs extra tall transmission filter with a metal threaded adapter (instead of the OEM plastic one). I recommend getting an extra long 5mm hex key, as one of the bolts by the lines going to the cooler is hard to get to. I also bought an aftermarket gasket - you"ll have to drop the pan again to replace the filters and the RTV sealant will require cleaning every time.

p
phillip h.
Built like a BSH!

I chose this pan from the many other offerings due to it having more gussets between the bolt holes (added strength). This thing is tough! Installation was simple and straightforward; I used a paper gasket (not included) because I’m not a fan of using RTV, and I used Loctite 243 (blue medium strength) on all the fasteners, torqued to 9 lb/ft. Not knowing how much fluid I had drained, I simply weighed the collected fluid and compared that to a container of new fluid, and added an additional three quarts to get me in the ballpark. I will definitely be using PPE for my differential covers next!

J
Joseph S.
Heavy Duty Cast Aluminum Transmission pan

The quality of this product is unsurpassed. Fit and finish was absolutly perfect. After installation I knew this was the correct choice for me. Transmission temp stayed at 120 on the hwy

J
JNB
A fine addition

A fine addition to the truck. Fits as advertised and came with the required hardware and filter. I used a oem new gasket and no leaks or issues.

B
Brent W.
Awesome!!

i installed this a couple of weeks ago, i also put the transmission bypass at the same time. So far i haven't been able to get the transmission temp over 140. it is amazing. Cant wait until i tow my trailer........ill let you know how it does.
