2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve Pacific Performance Engineering

2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve

Name: 2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve
Brand: Pacific Performance Engineering
SKU: 125068000
Price: 142.0 AUD
Availability: InStock

$142.00 In Stock Temporarily Out of Stock

PART NUMBER: 125068000 GTIN: 840171221053

Features:

Maximizes fluid flow to and from the transmission cooler
Billet aluminum construction
Direct fit with OEM 6L80 6-Speed transmission and fluid lines
Service plug with Neodymium magnet and O-ring seal

FREE SHIPPING FOR ORDERS OVER $100

1 YEAR LIMITED WARRANTY

30-DAY RETURNS

Description
Compatible Vehicles
Downloads
Reviews

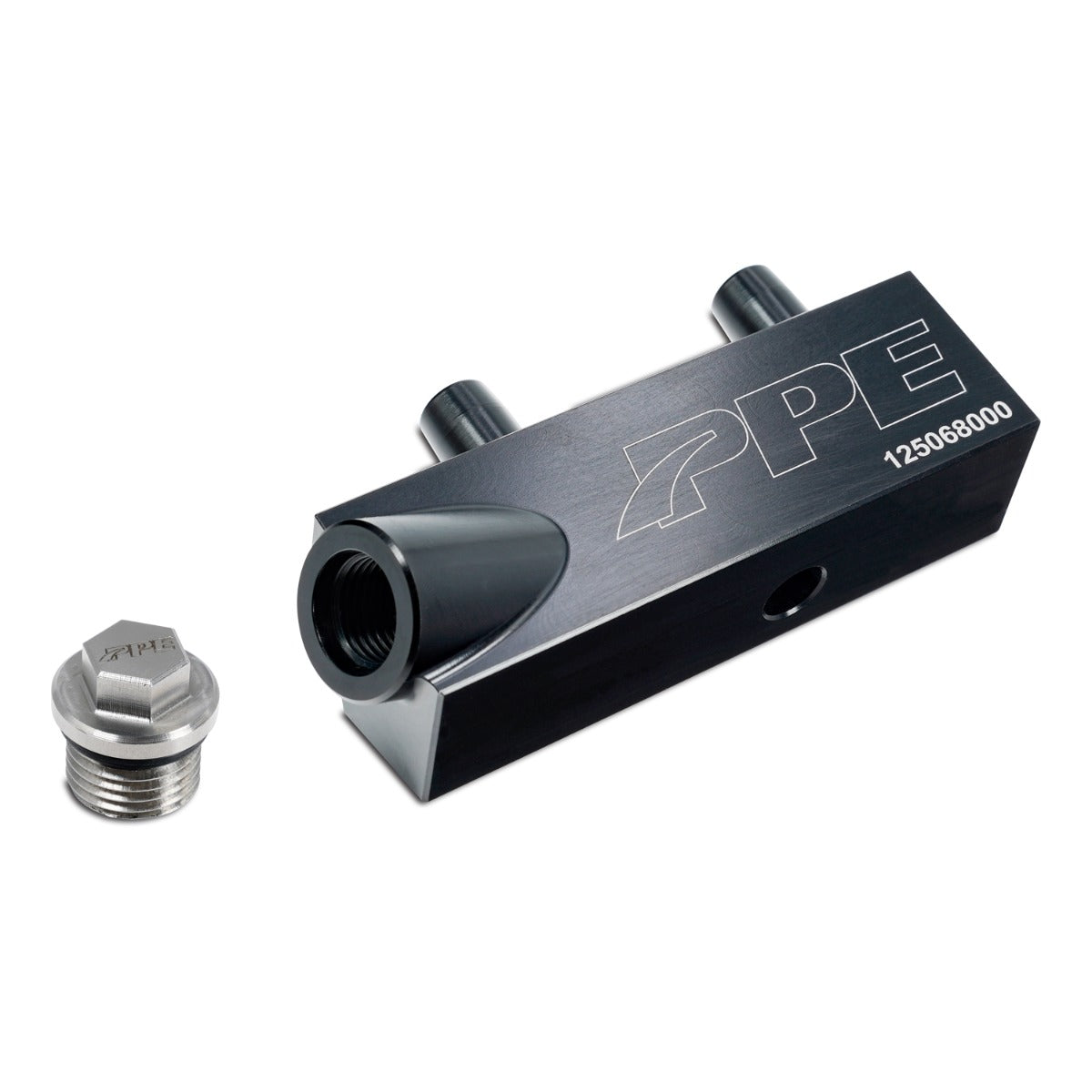

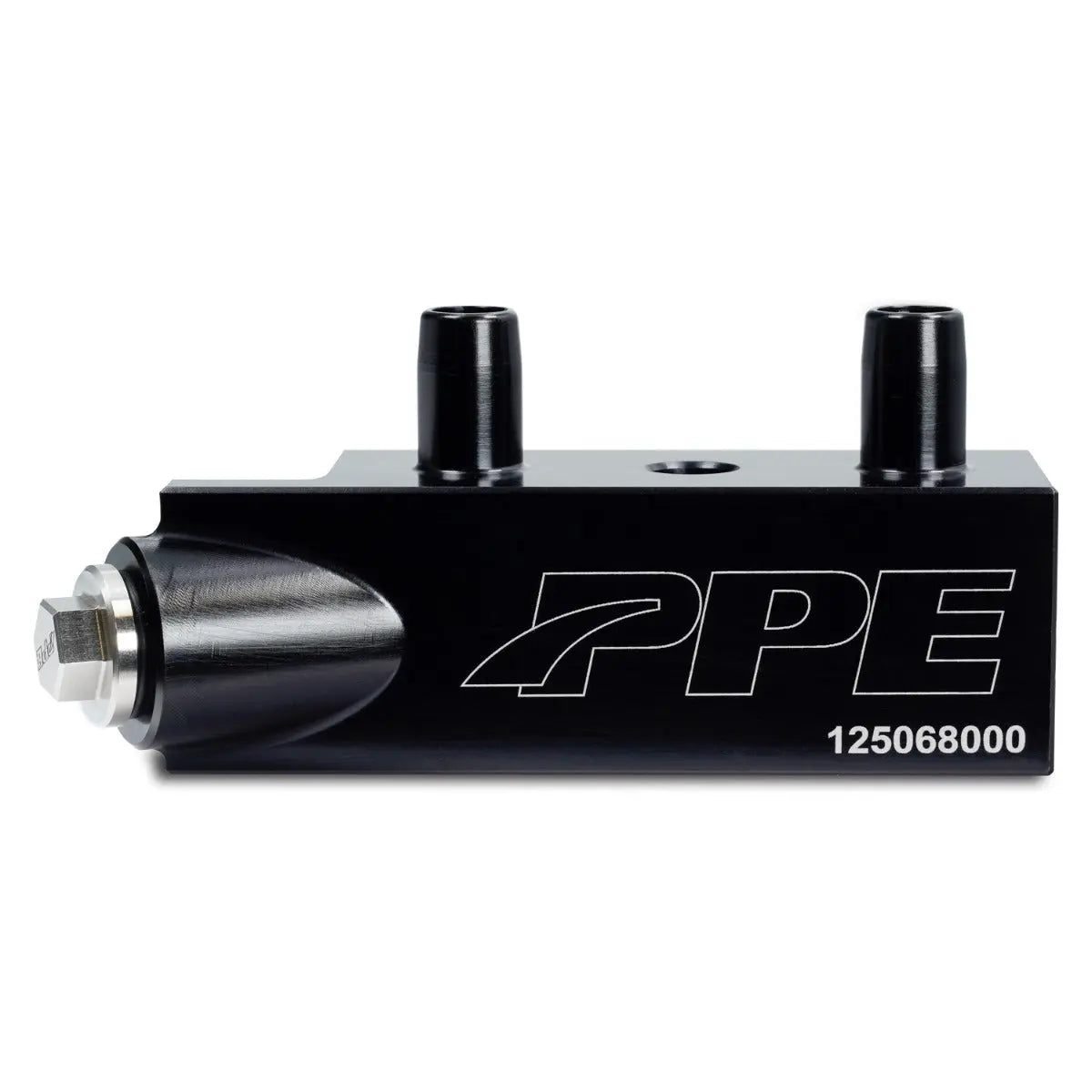

6L80 Transmission Fluid Thermal Bypass Valve

Add another measure of protection and increase fluid flow to transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 6L80 6-Speed transmission.

The OEM part has restrictive internal passages. When the OEM valve fails in the closed position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive mechanical factory valve, maximizing fluid flow to and from the transmission cooler.

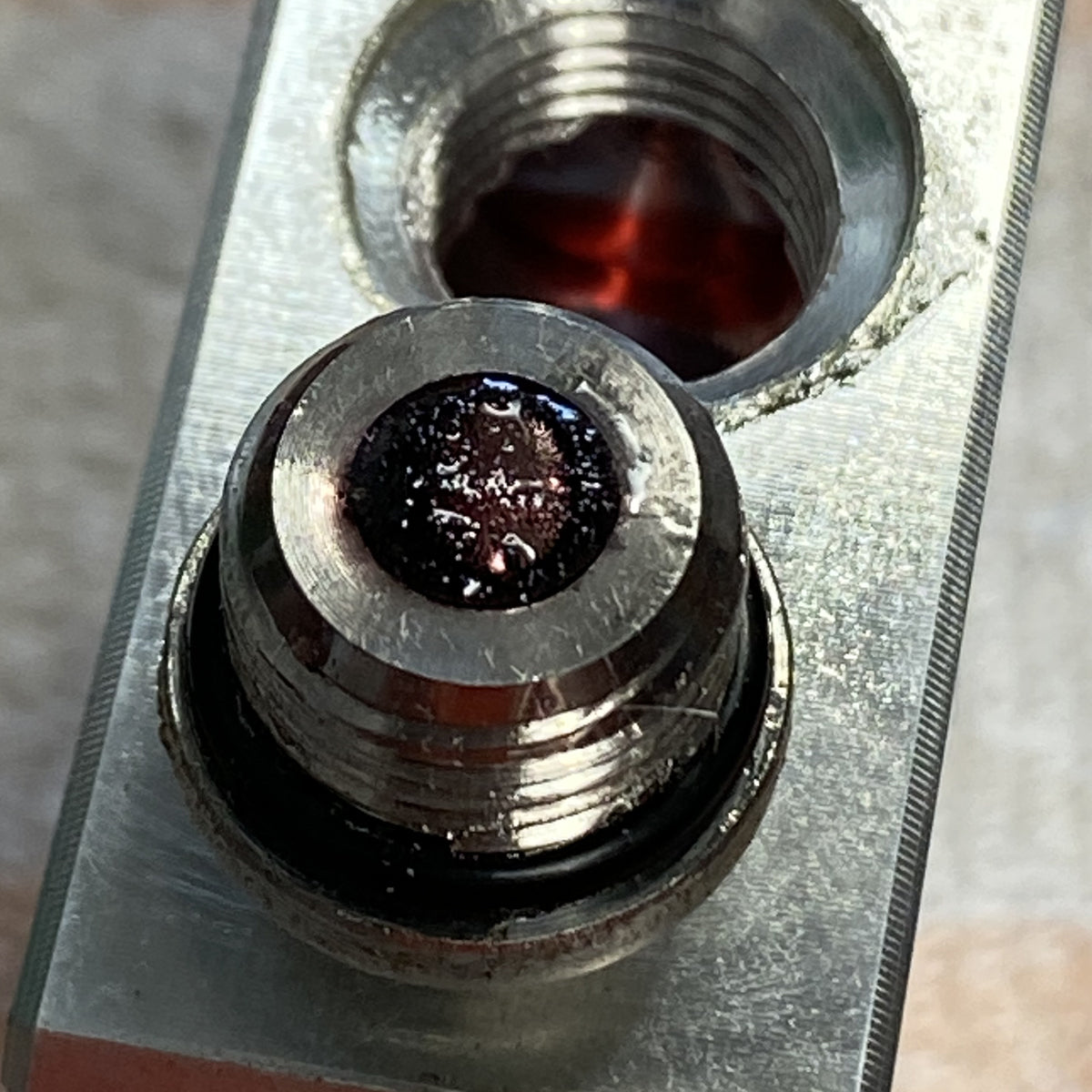

For further protection, a Neodymium magnet equipped service plug with O-ring seal has been added. The removable plug traps ferrous debris and can be accessed to remove particles from the system. The factory bypass valve does not have this feature.

6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

Check for Compatibility!

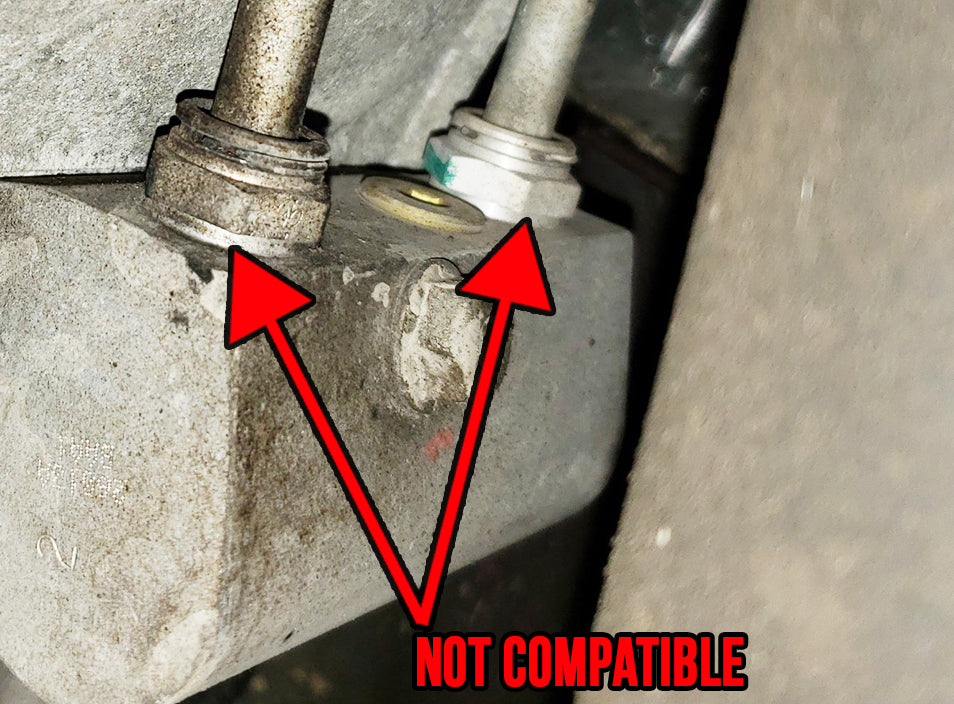

Vehicles equipped with quick connect fittings and clip-style trans line retainers are not compatible with PPE p/n 125068000 6L80 Thermal Bypass valve.
6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

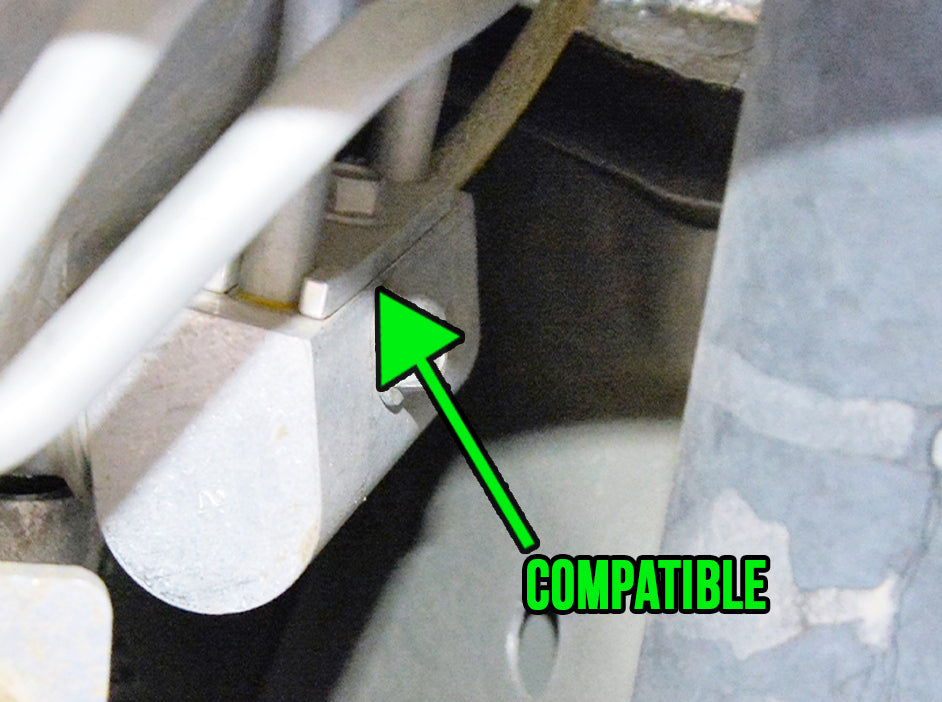

Vehicles equipped with the plate and bolt-style trans line retainer is compatible with PPE p/n 125068000 6L80 Thermal Bypass Valve.
6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

2016 Ram 2500 6.7 Cummins w/68rfe

The thermal bypass paired with the deeper pan, towed 9k from Sacramento to Coos Bay Oregon. I don’t think my transmission ever reached 160. Very very pleased with my purchase from PPE. Cooled my transmission down greatly. And with their upgraded spin on filter, truck is shifting like butter!

DON'T FOR GET TO TIGHTEN THE PLUG

HAVEN'T SEEN A DRAMTIC DIP IN TEMPERATURES AND I WAS A DUMMY AND DIDN'T CHECK THE PLUG BEFORE A TEST DRIVE AND LOST NEARLY A GALLON OF FLUID. OOPS MY BAD BUT AT LEAST THE BOTTOM OF MY SUBURBAN WON'T RUST FOR A WHILE

Perfect product and easy install

My 2017 Silverado z71 was noticed to be running warm in the 180s even on casual evening grocery runs. Swapped this out in the driveway while dinner was cooking and took it out for a night cruise later on. Stayed around 135-138 with a casual 1 hour drive averaging 45 mph and alot of stop and go. Got up to 145 ish after some red light pulls but never went higher.
Can’t say enough about PPE for designing this solution to the Gm failure.

I wish I did this sooner

my first 6L80 trans failed at 64,000 miles with light use, the dealer gave me a new one, I lost confidence in this GM transmission, I installed your thermal bypass valve and it now runs up to 50 degrees cooler, thanks.
