2020-2024 Ford Super Duty 6.2L/7.3L 10R140 Heavy-Duty Cast Aluminum Transmission Pan
$584.00
In Stock
Temporarily Out of Stock
PART NUMBER:
328053410
GTIN:
840171221398
OEM P/N REFERENCE: FORD PC3Z7A194A
LIFETIME LIMITED WARRANTY
30-DAY RETURNS
- Description
- Compatible Vehicles
- Downloads

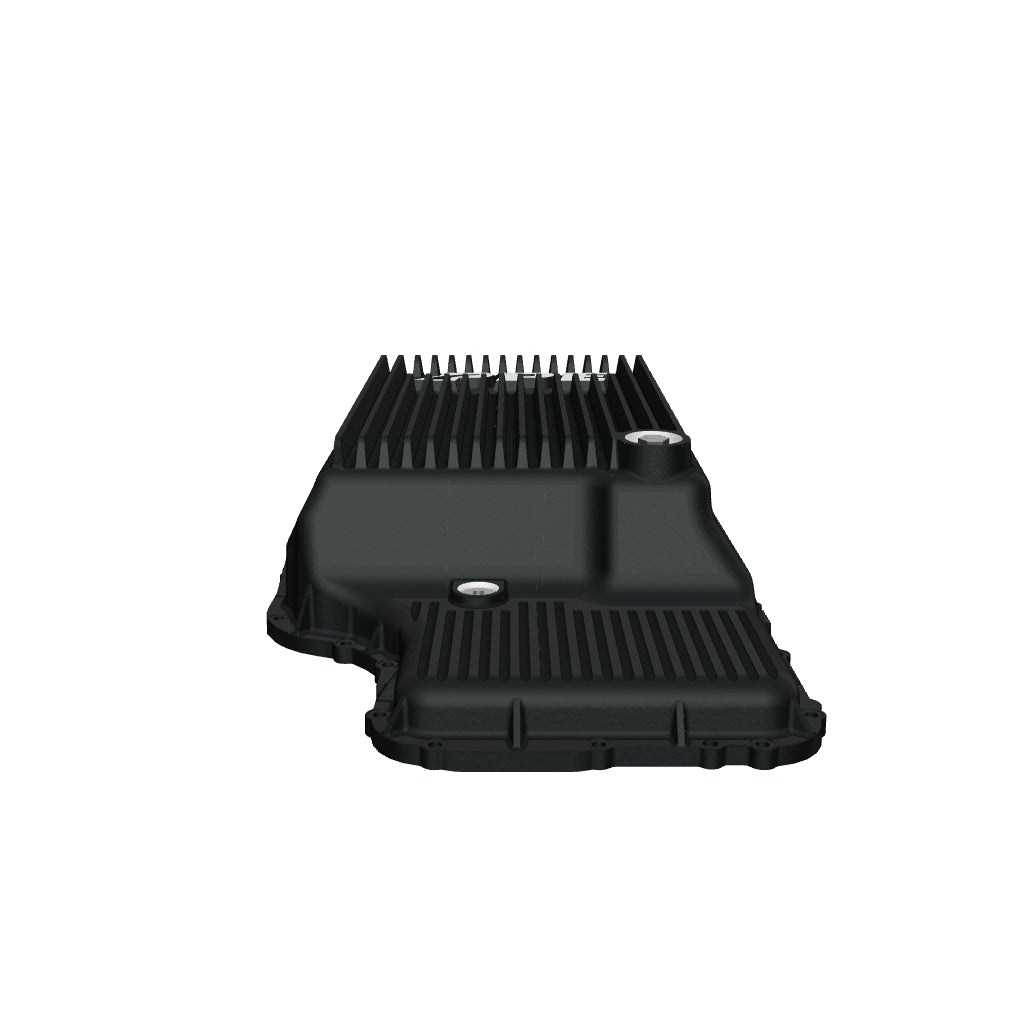

10R140 Heavy-Duty Cast Aluminum Transmission Pan
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 5 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
A fluid level check standpipe ensures proper fluid level during the filling process. The drain plug and fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 10-speed transmission running longer, healthier, and cooler with PPE.
Note: New for 2025, certain Ford Super Duty trucks equipped with the 7.3L engine may come with either the 10R140 TorqShift ten-speed transmission or the 10R100 (TorqShift-G) ten-speed transmission. These transmissions use different pans that are not interchangeable. PPE Part Number 3280534XX is designed for the 10R140, while 3280536XX fits the 10R100. Please verify your transmission type before placing an order to ensure proper fitment.
Files
Install Guide
Drawings
California Prop 65 Warning. Learn more here.
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Straight forward install, little thighs to get between the converters but with patience and some gentle persuasion it fits. Be careful of the solenoids and wiring. Took 12 quarts to fill up. Temps are running about 10 degrees cooler so far.
