2015-2018 SILVERADO/SIERRA 1500 W/ 8L90 TRANSMISSION AND 3/8

2015-2018 SILVERADO/SIERRA 1500 W/ 8L90 TRANSMISSION AND 3/8" LINE - TRANSMISSION FLUID THERMAL BYPASS VALVE

Name: 2015-2018 SILVERADO/SIERRA 1500 W/ 8L90 TRANSMISSION AND 3/8" LINE - TRANSMISSION FLUID THERMAL BYPASS VALVE
Brand: Pacific Performance Engineering
SKU: 125071000
Price: 127.0 CAD
Availability: InStock

$127.00 In Stock Item not available

PART NUMBER: 125071000 GTIN: 840171223149

OEM P/N REFERENCE: GM 13561467

FEATURES

Maximizes fluid flow to and from the transmission cooler
Billet aluminum construction
Direct fit with OEM 8L90 8-speed transmission and fluid lines
Service plug with Neodymium magnet and O-ring seal

FREE SHIPPING FOR ORDERS OVER $100

LIFETIME LIMITED WARRANTY

30-DAY RETURNS

Description
Compatible Vehicles
Downloads

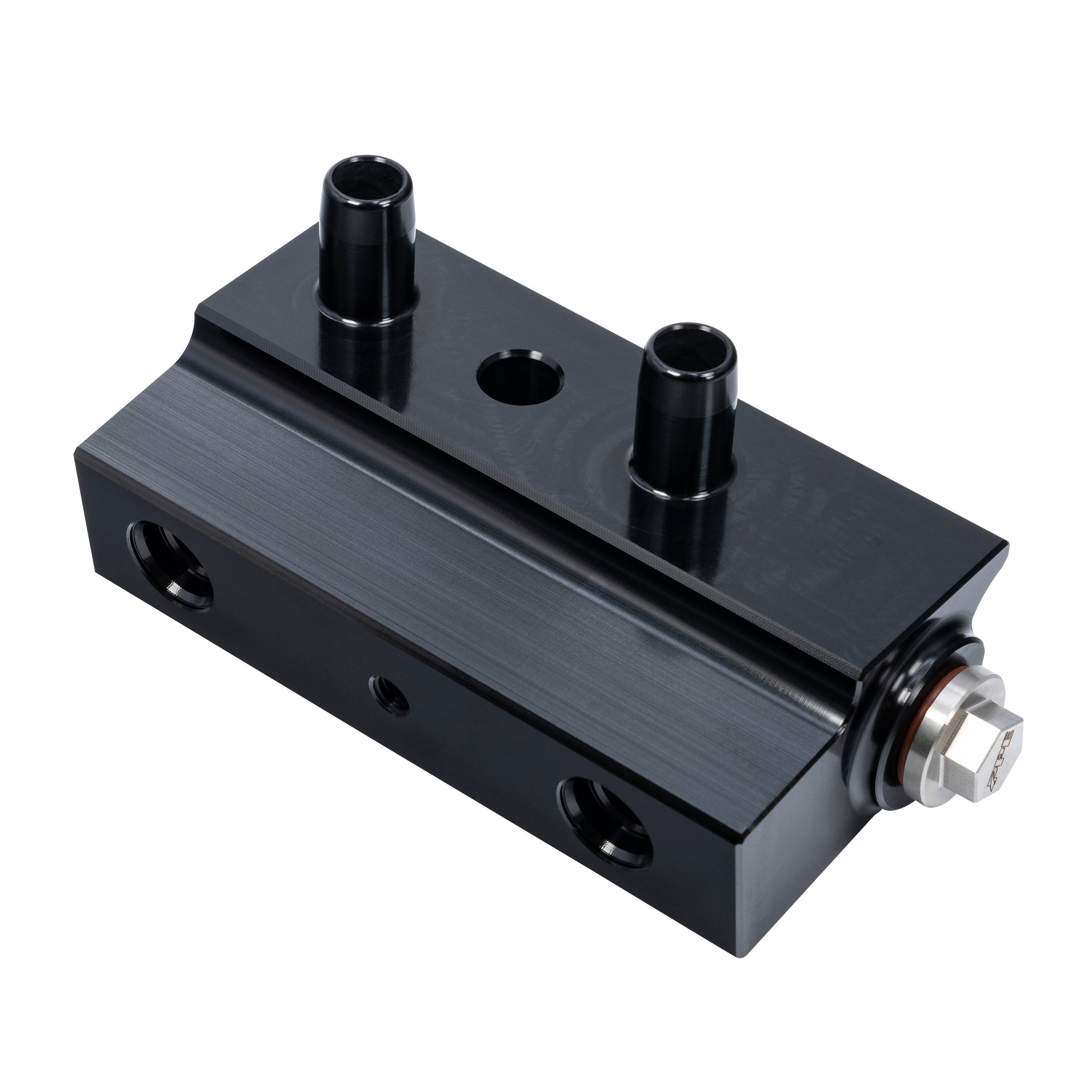

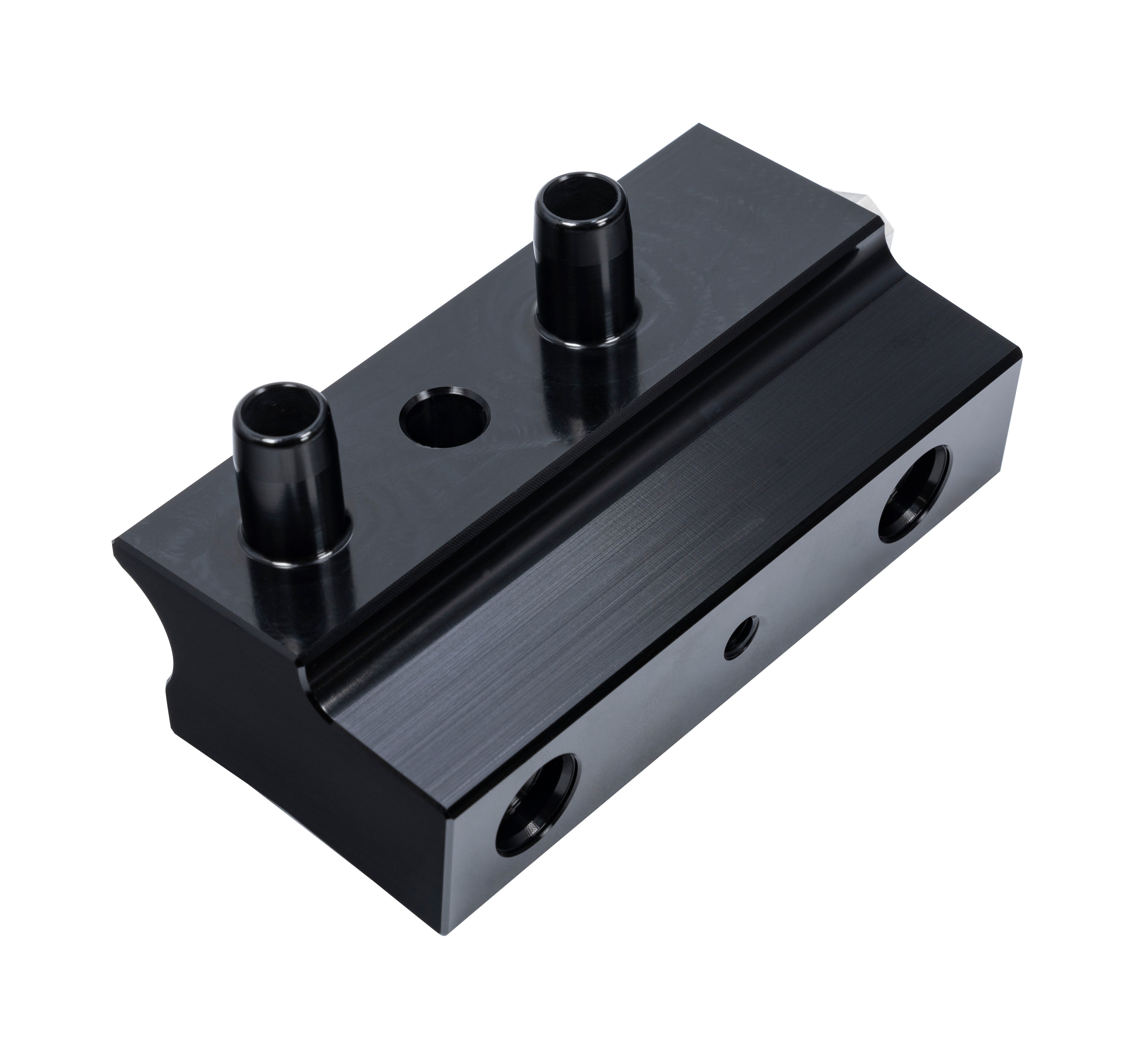

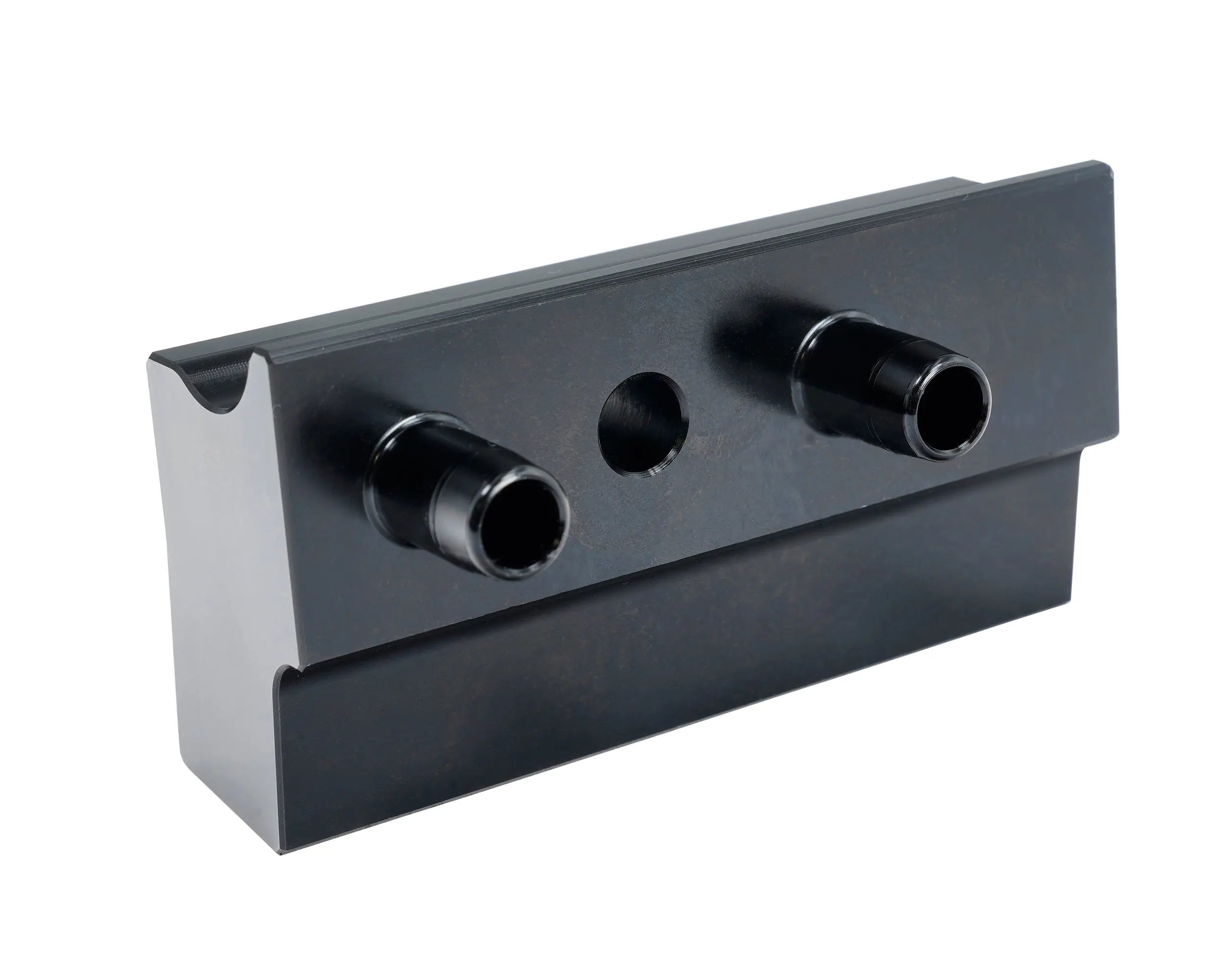

Transmission Fluid Thermal Bypass Valve

Add another measure of protection and increase fluid flow to the transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 8L90 8-speed transmission.

The OEM part has restrictive internal passages. When the OEM valve fails in the closed position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive mechanical factory valve, maximizing fluid flow to and from the transmission cooler.

Transmission Fluid Thermal Bypass Valve

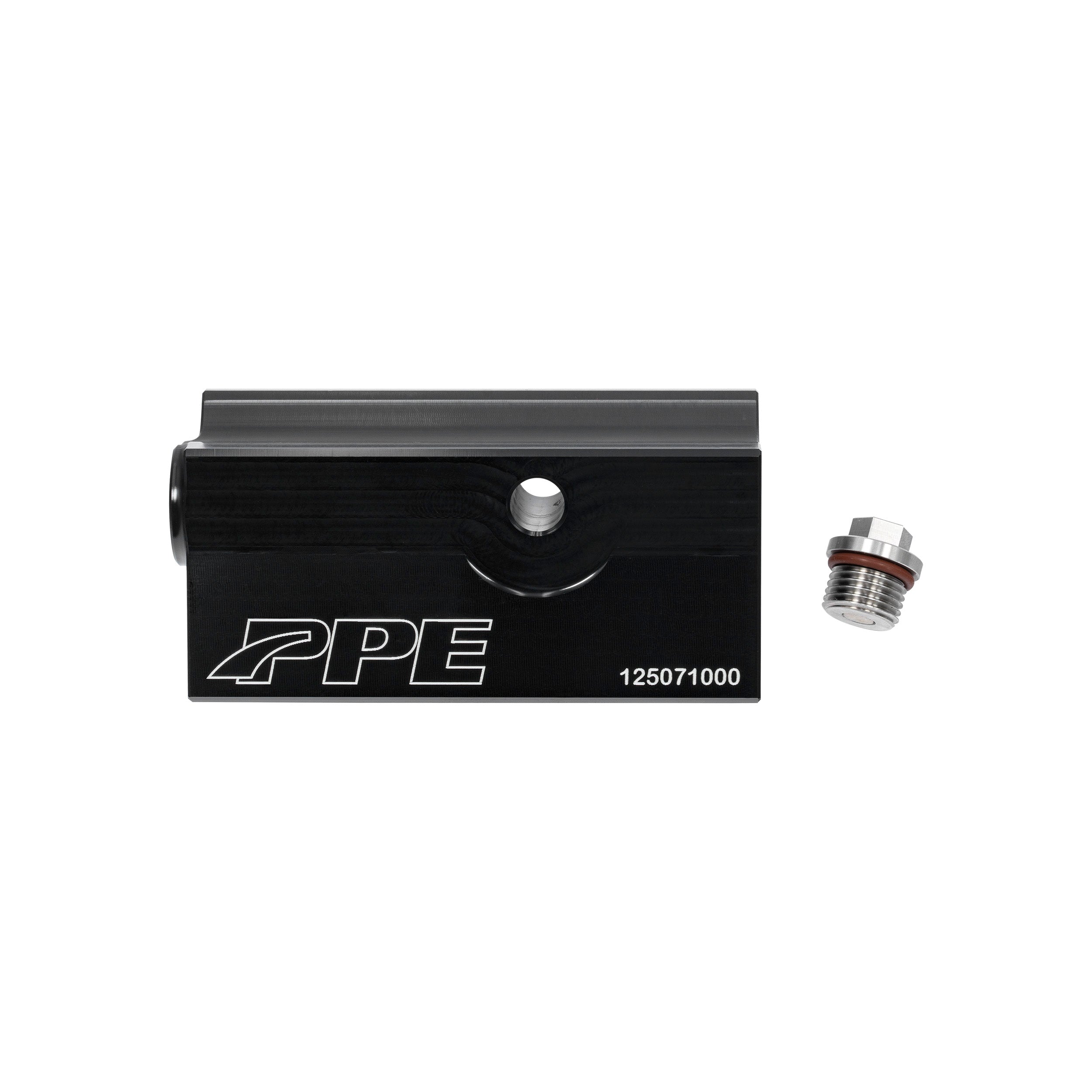

For further protection, a Neodymium magnet-equipped service plug with an O-ring seal has been added. The removable plug traps ferrous debris and can be accessed to remove particles from the system. The factory bypass valve does not have this feature.

Installation Guide:

Transmission Fluid Thermal Bypass Valve - 8L90, 8-speed"

Awesome!

I bought this because my 2018 GMC Sierra with 8L90 transmission kept overheating and left me stranded. Come to find out the OEM bypass valve was clogged with debris and never really kept the transmission cool to begin with. When I was towing I used to see temps around 220. Now towing I never get above 190. Definitely recommend!

GM 8L90 Transmission thermostat bypass

So far is proving to be a damn good product went from 192° temps down to 149° sitting at idle. Definitely recommend.

Thumbs up

My transmission is running cooler 😎. Thanks PPE

6L80 bypass

The part is made extremely nice. Fits perfect. Trans was running 190-195, now it runs 160-162. Highly recommend to prolong the life of the grenade known as the 6L80.

Works

Works Great Trans Temp here in Phoenix During the day Usually Hover around 195-205 installed This Bypass Valve Now I’m Seeing around 160-170. Heading to South Dakota in 2 weeks Pulling a Trailer that Should give it a Good Test. Other wise it’s doing what it’s supposed to do and the Build quality is Great.
