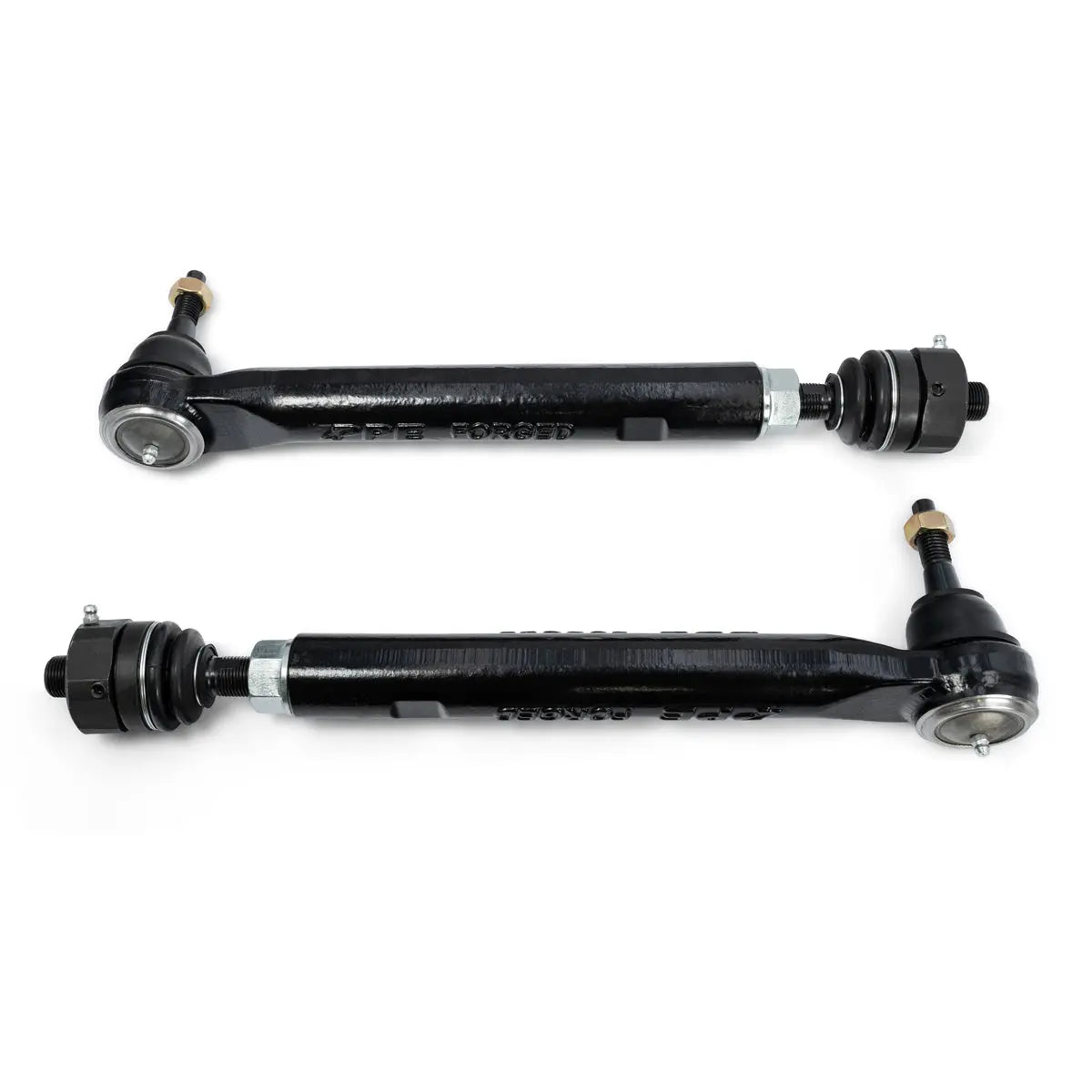

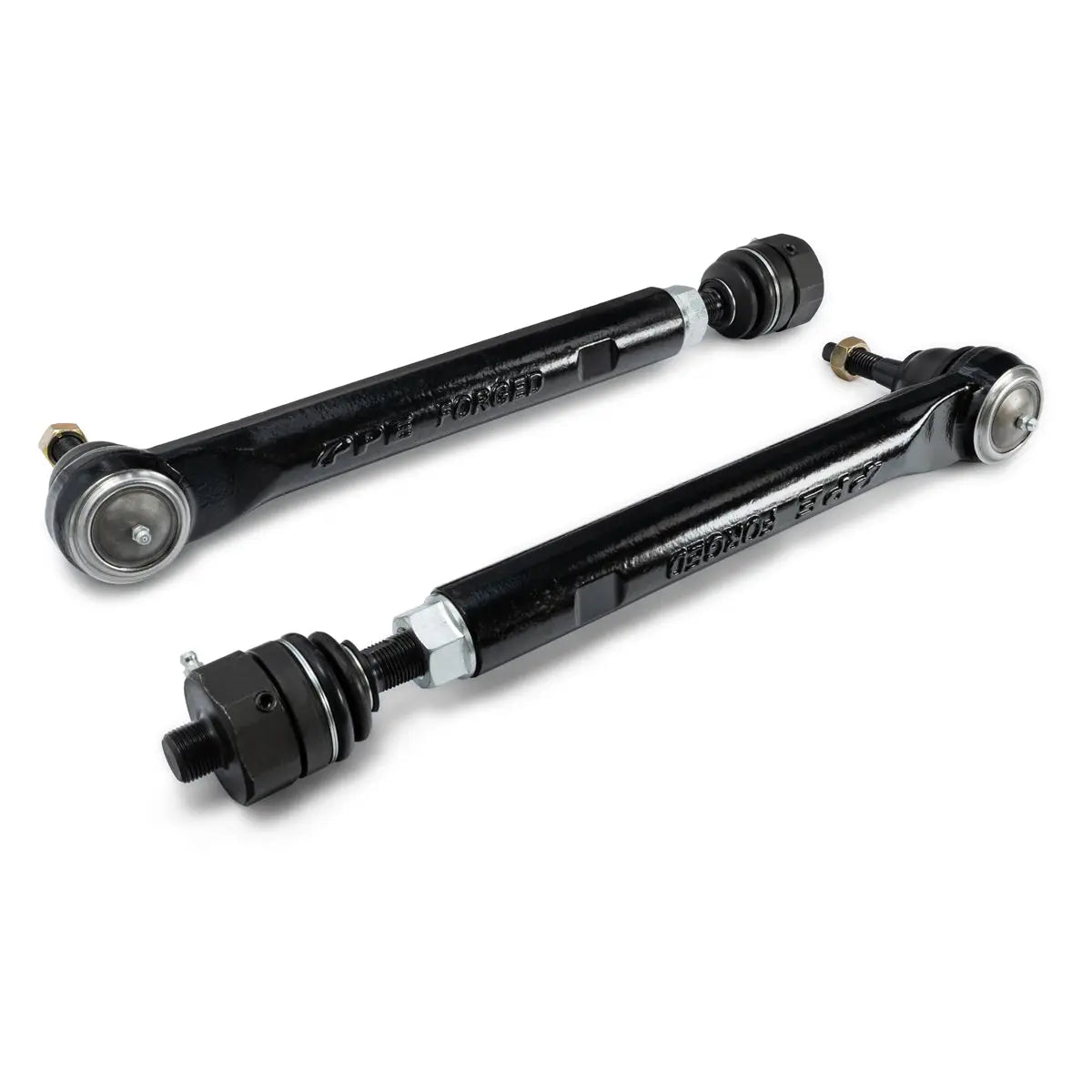

Stage3 Forged Tie Rod Assemblies 2011-2020

SKU 158031511 SKU 158031511

$275.99
Subscription Save

These tie rods are overkill for some, but when it comes to steering components, failure is not an option.

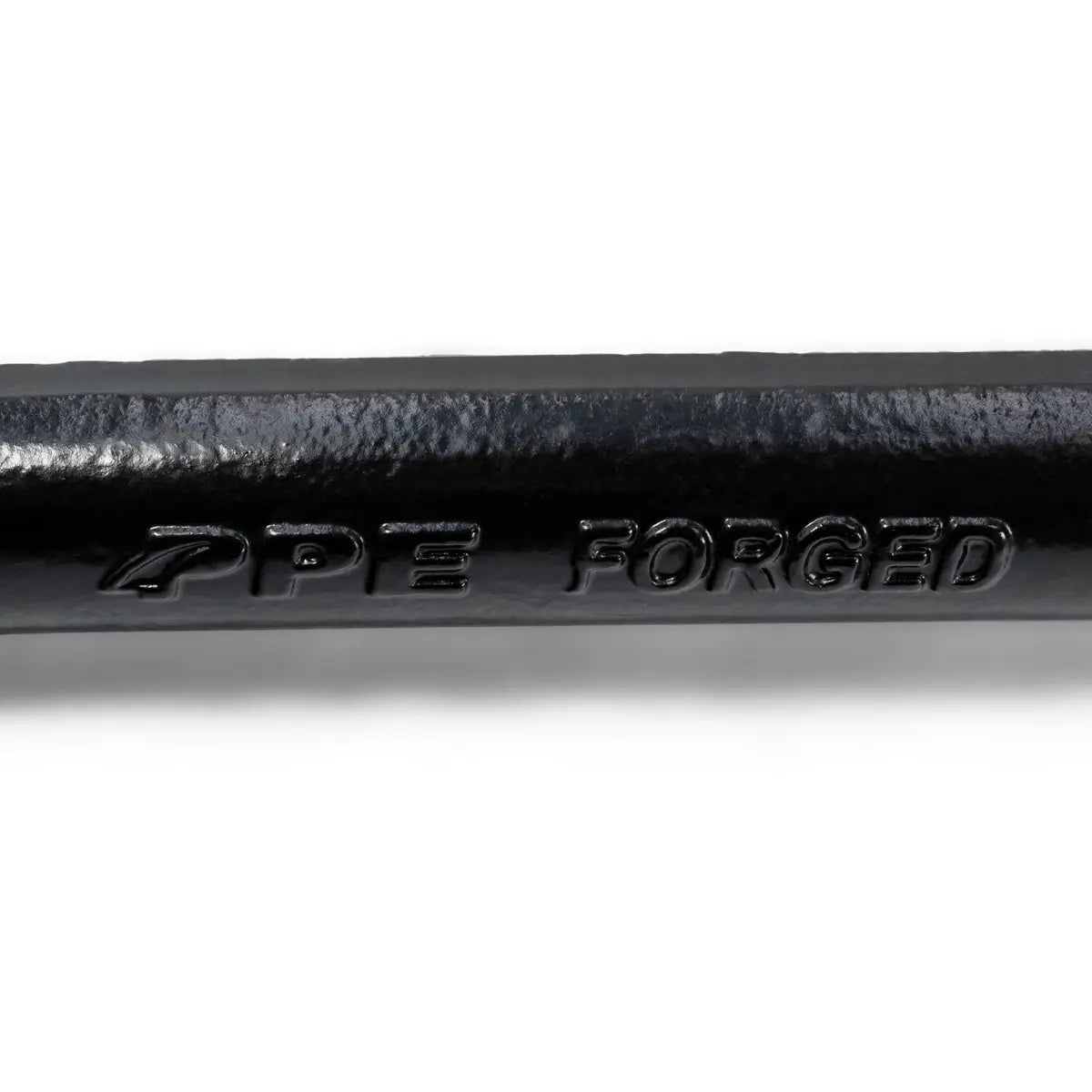

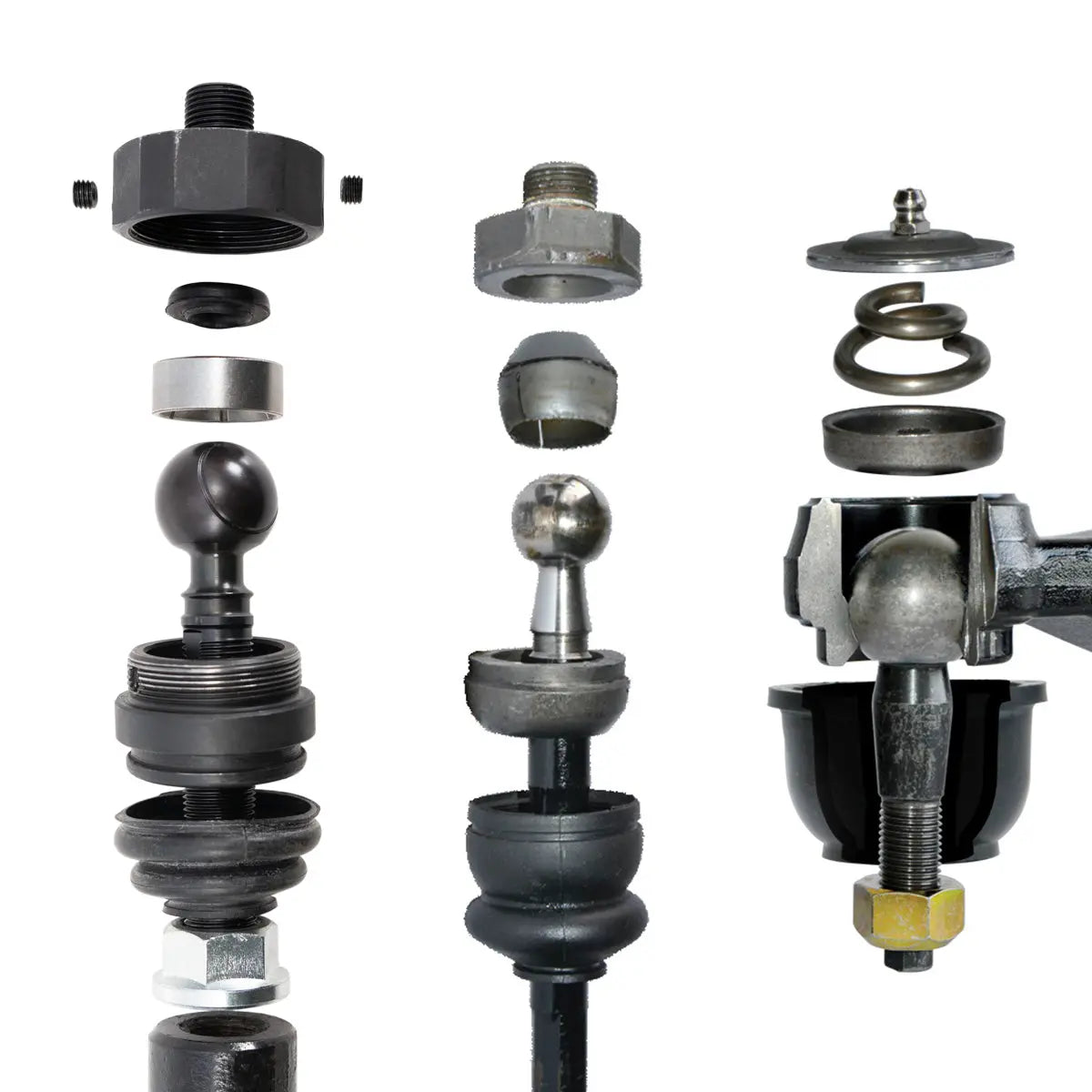

These tie rod assemblies are the best of the best. Featuring 1.5" wide forged tie rod, massive 2-1/3" ball joints and a much larger and stronger, adjustable inner ball joint. Outer tie rod end contains a spring-loaded gusher bearing that maintains constant pressure.

Features:

  • Fully adjustable and rebuildable
  • Limited lifetime warranty

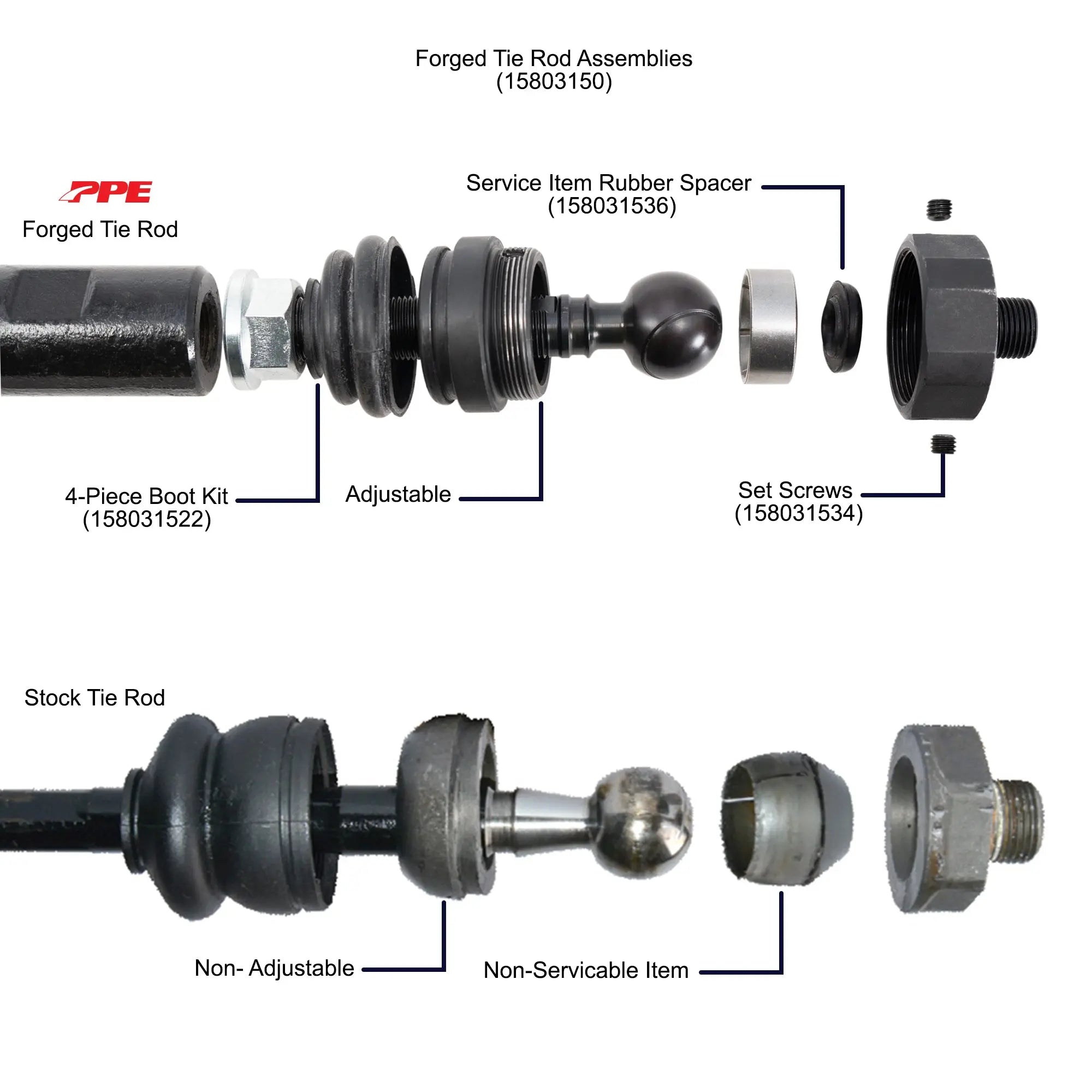

When compared to factory components:
30% larger toe adjusting shaft
53% larger tie rod body
35% larger outer ball joint

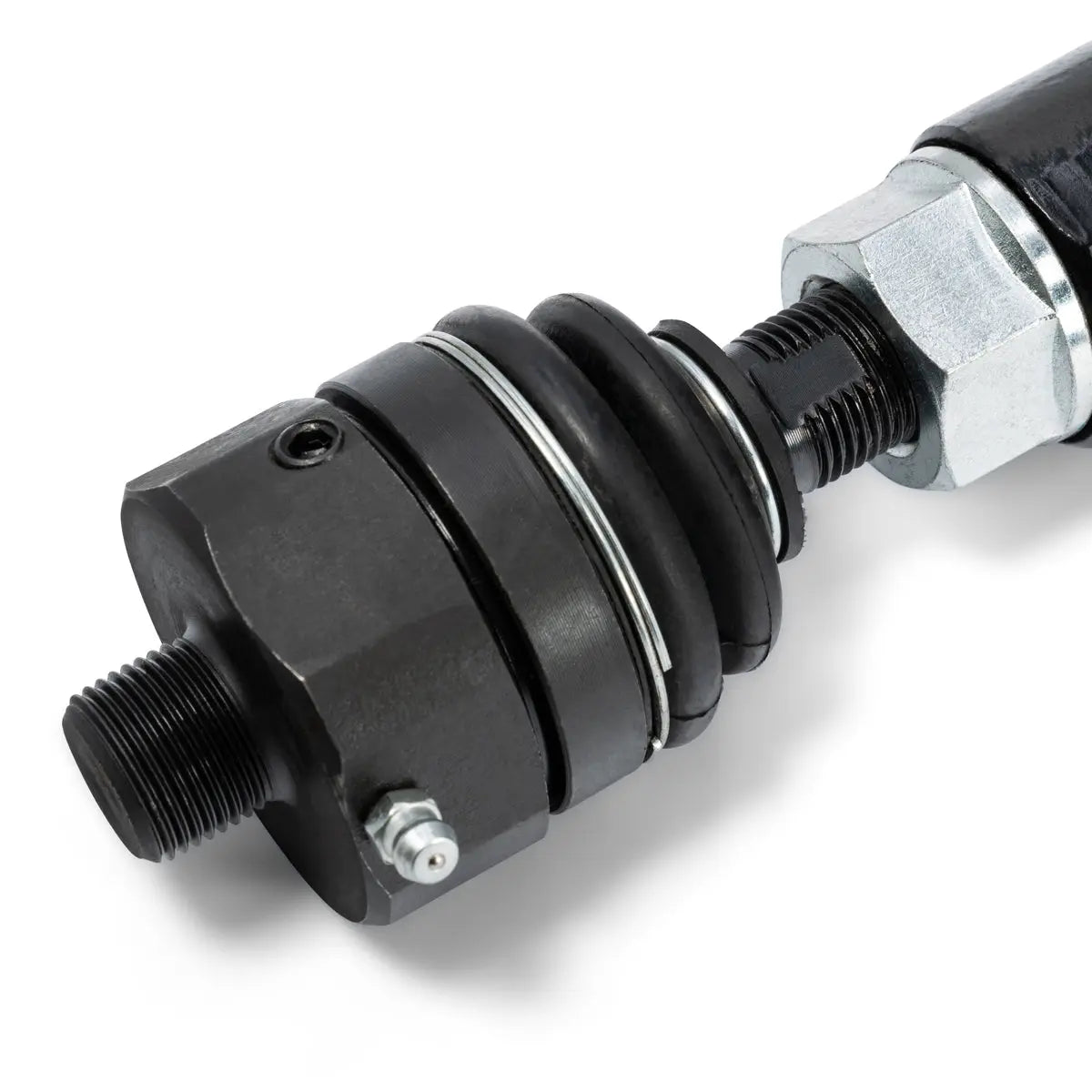

28% larger, adjustable inner ball joint





NOTICE: PPE Stage3 Tie Rods are engineered to fit GM stock steering components. Some aftermarket steering manufacturers have changed the placement of the tie rod mounting perch on the front spindle, which then requires a shorter tie rod. The Stage3 Tie Rod outers are fully-threaded internally, and may be trimmed to accommodate the relocated aftermarket perch location. An experienced installer should measure to determine the appropriate trim length.

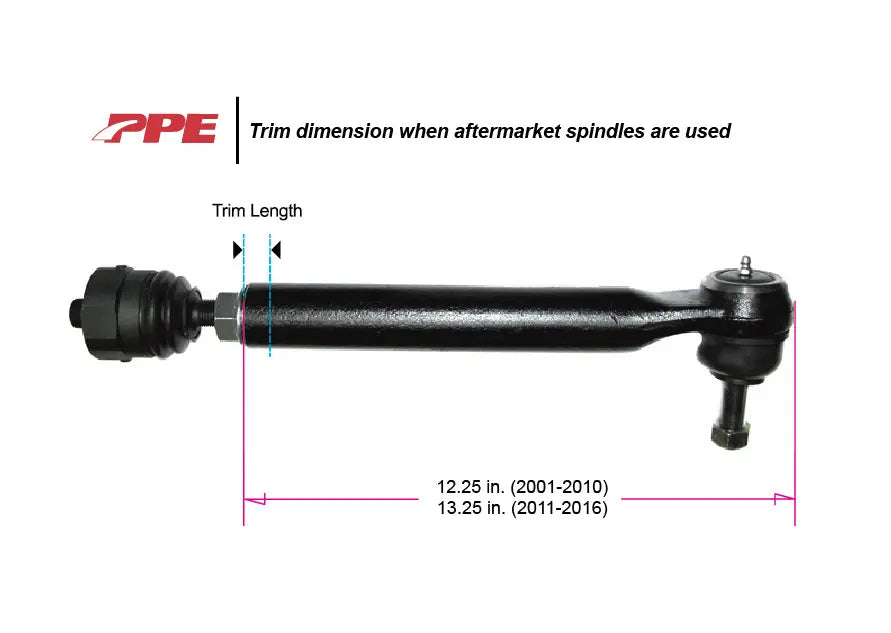

Trim dimension for aftermarket spindles





Installation Guide: 158031500_158031511_Stage3 Tie Rod Assemblies_v4C.pdf

GTIN 840171218046 GTIN 840171218046

Stage3 Forged Tie Rod Assemblies 2011-2020

$275.99
