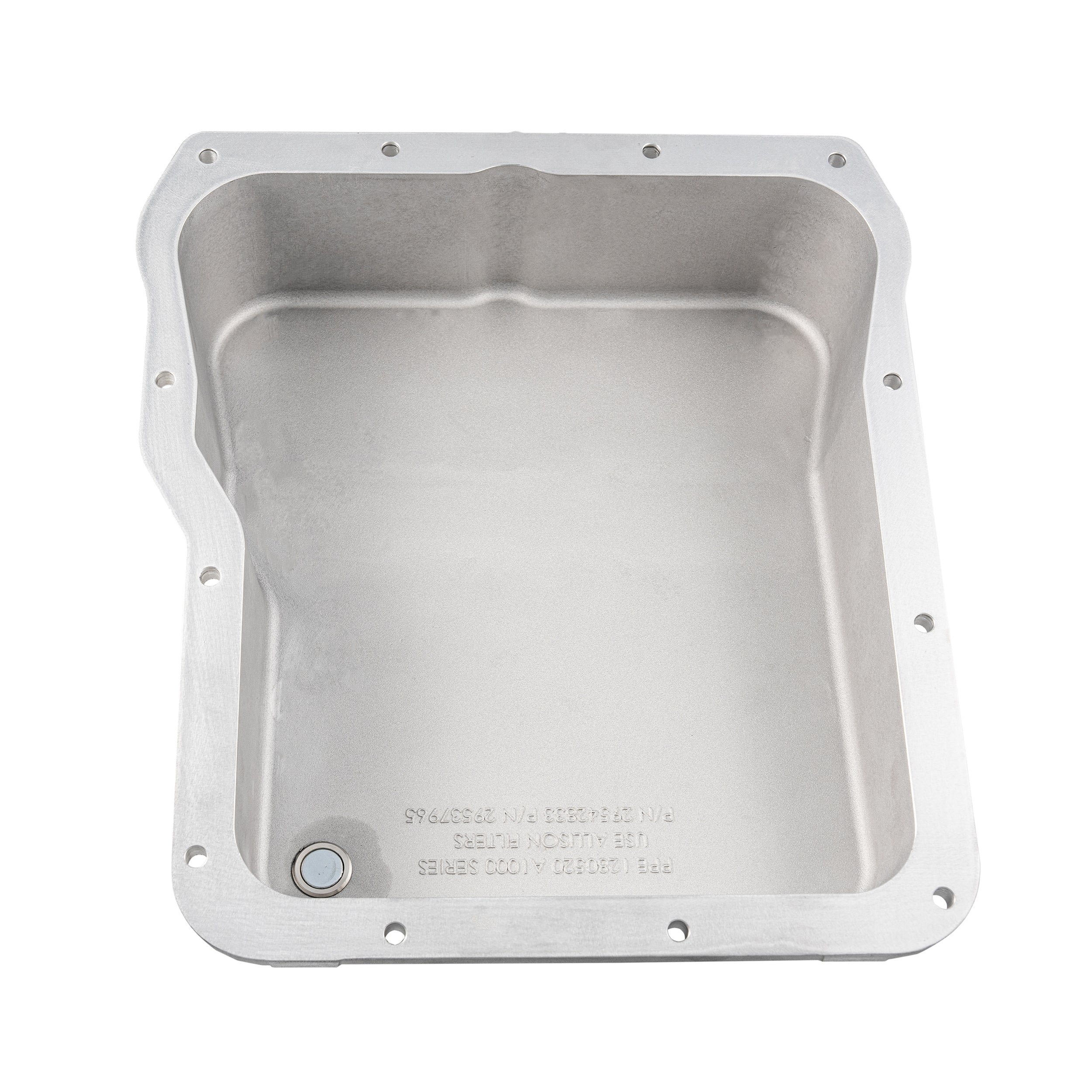

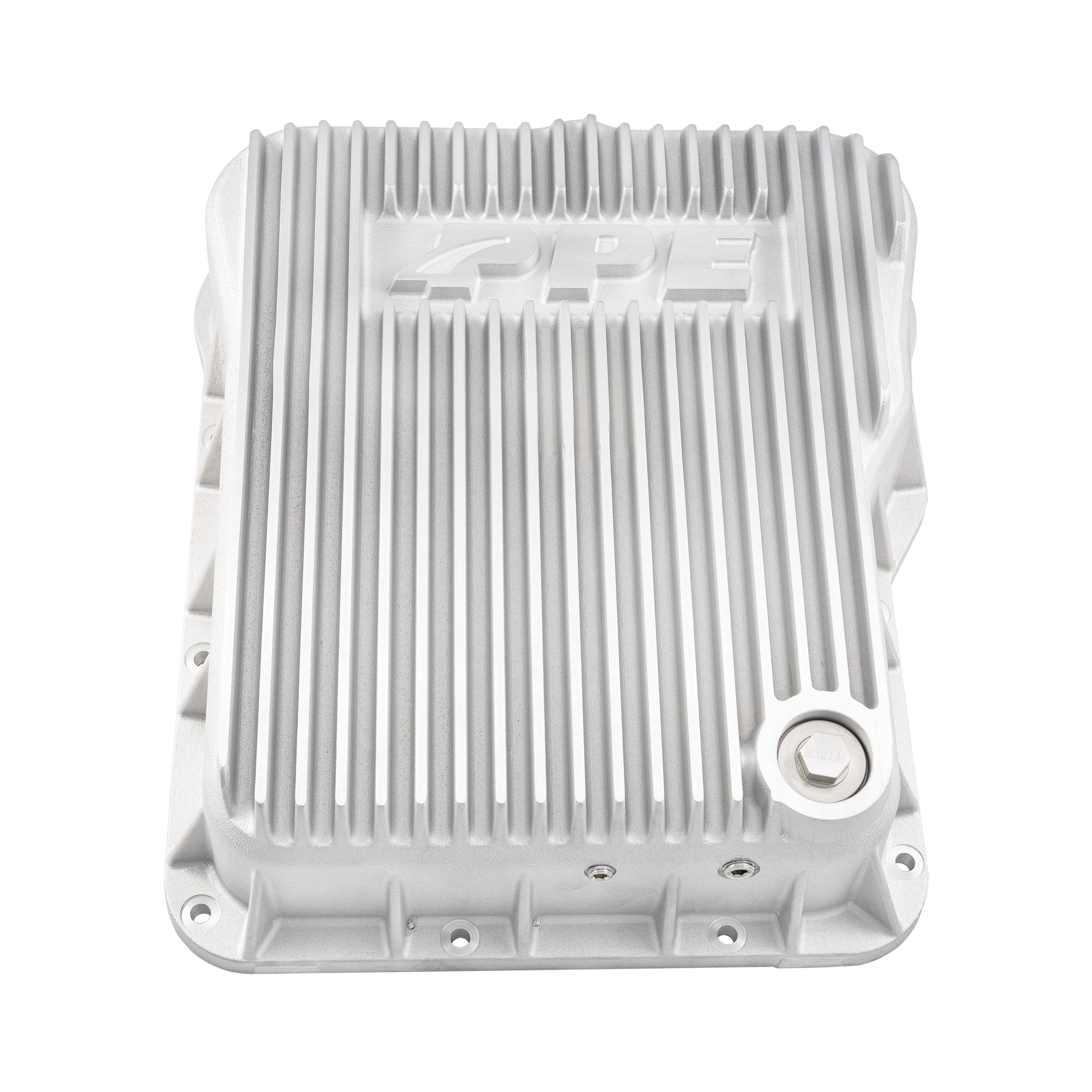

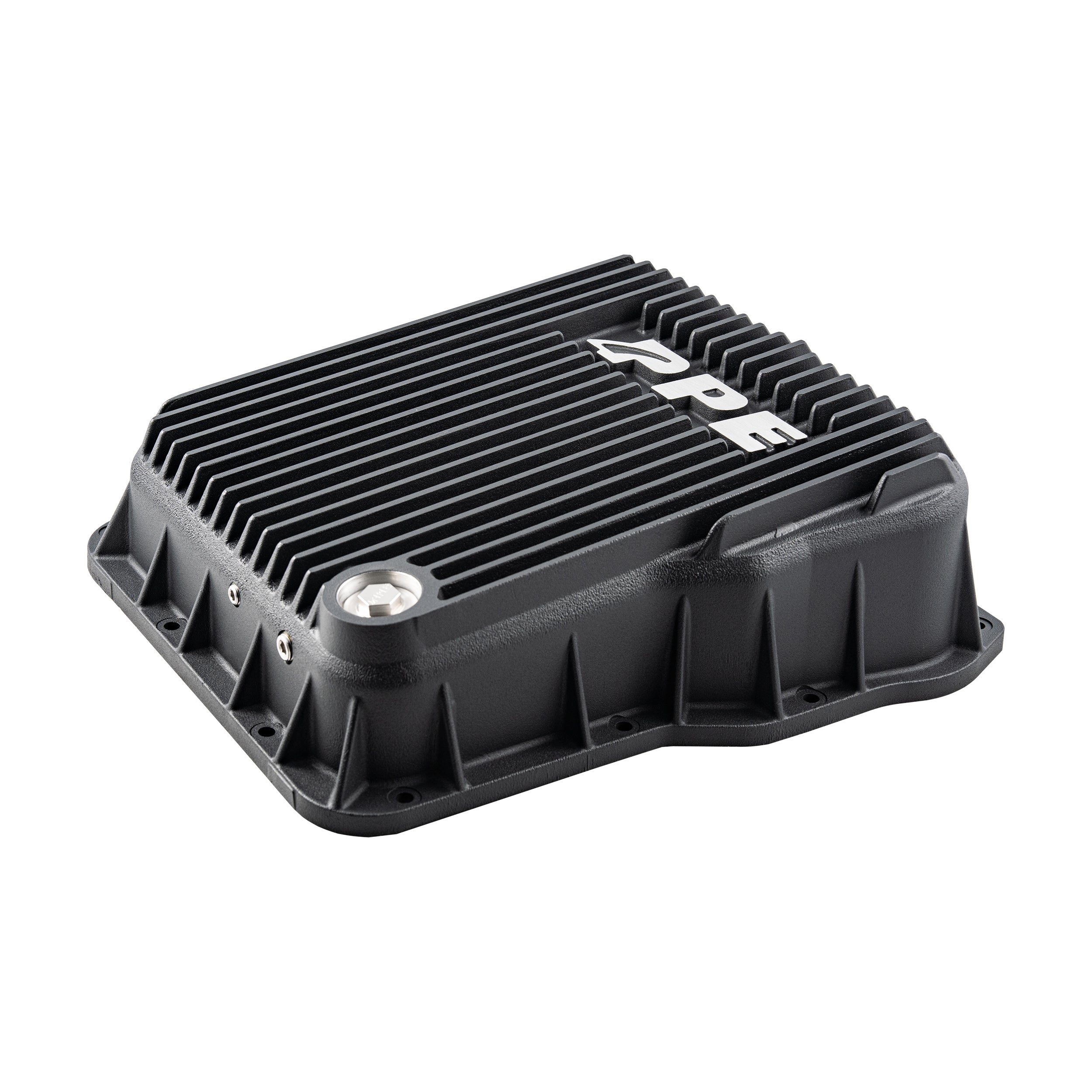

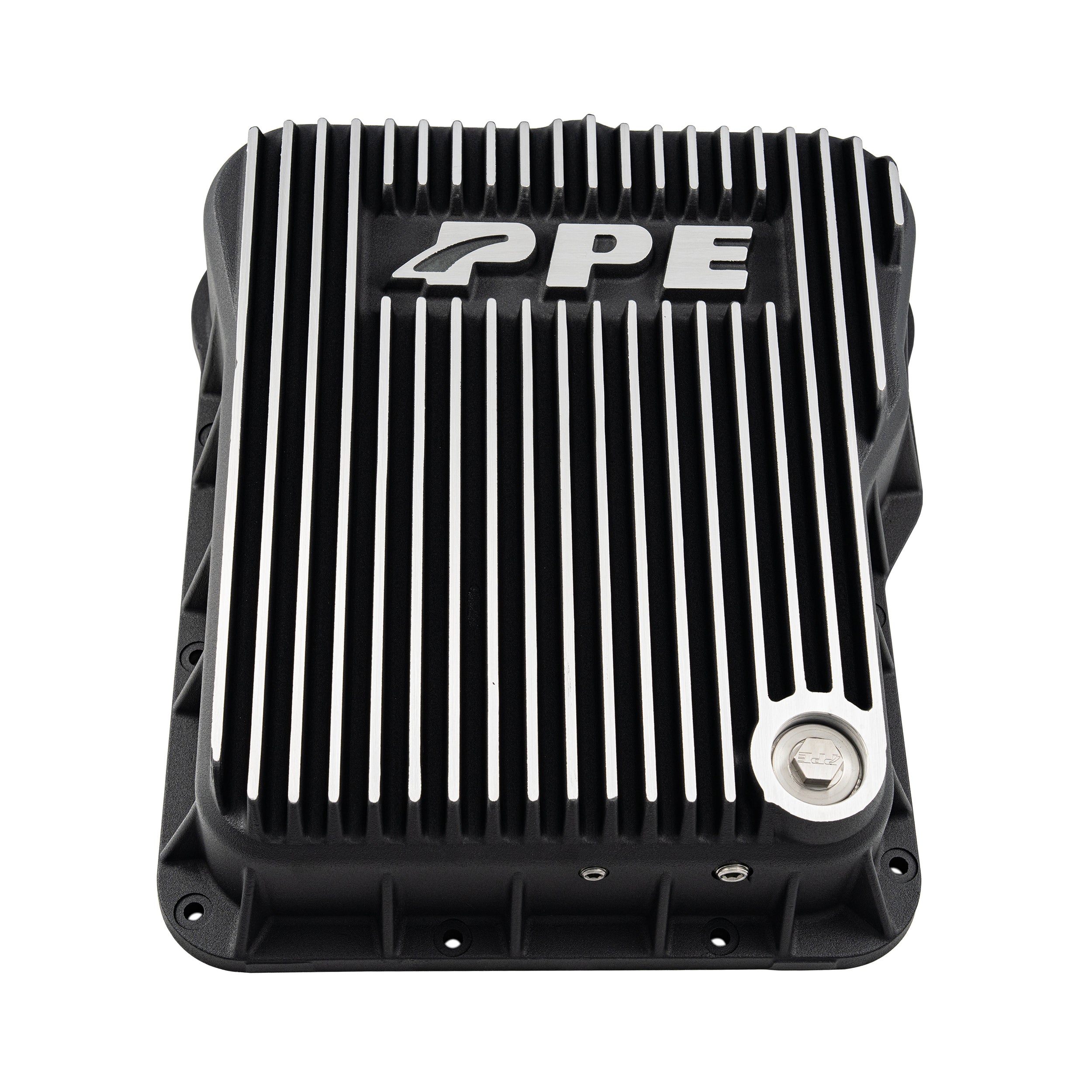

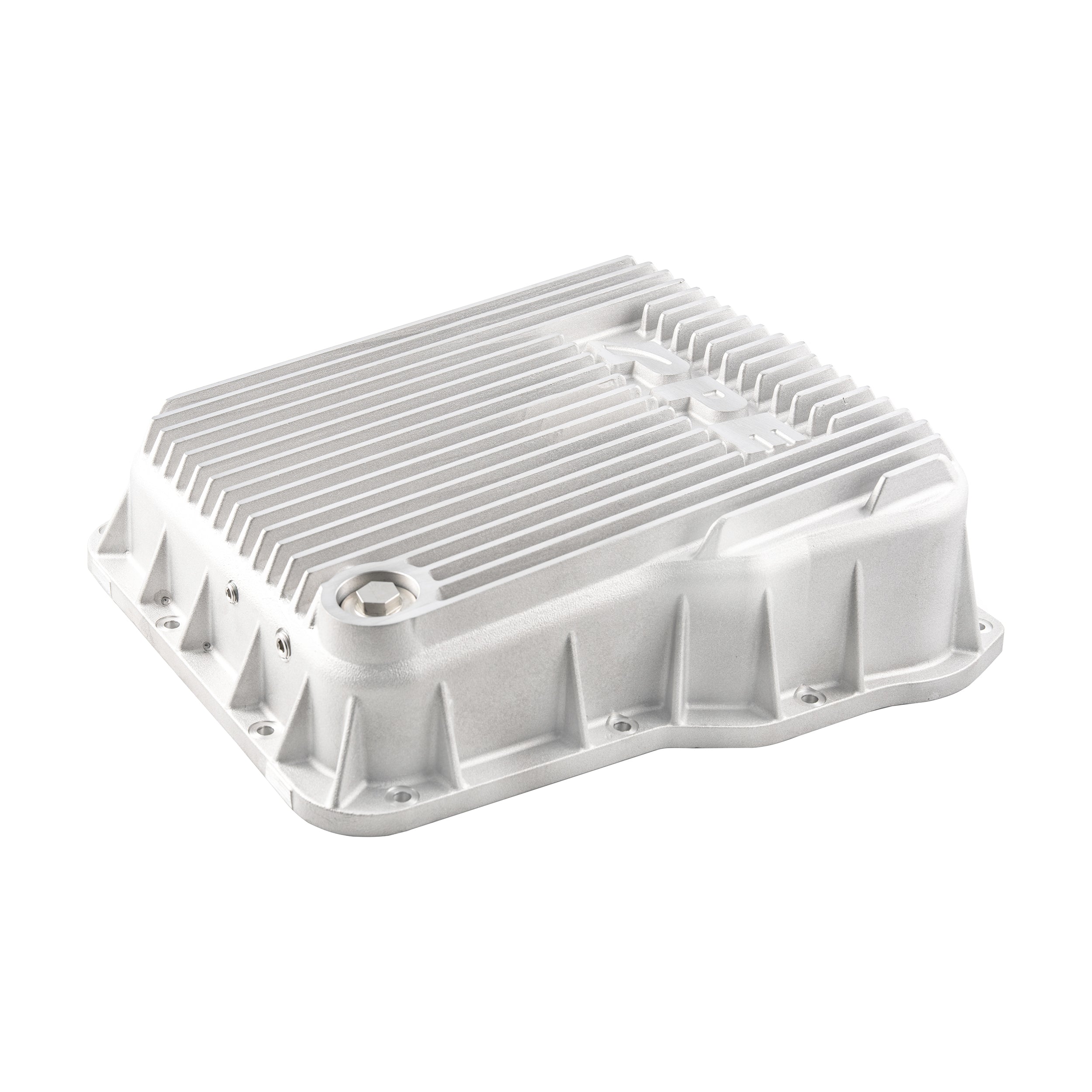

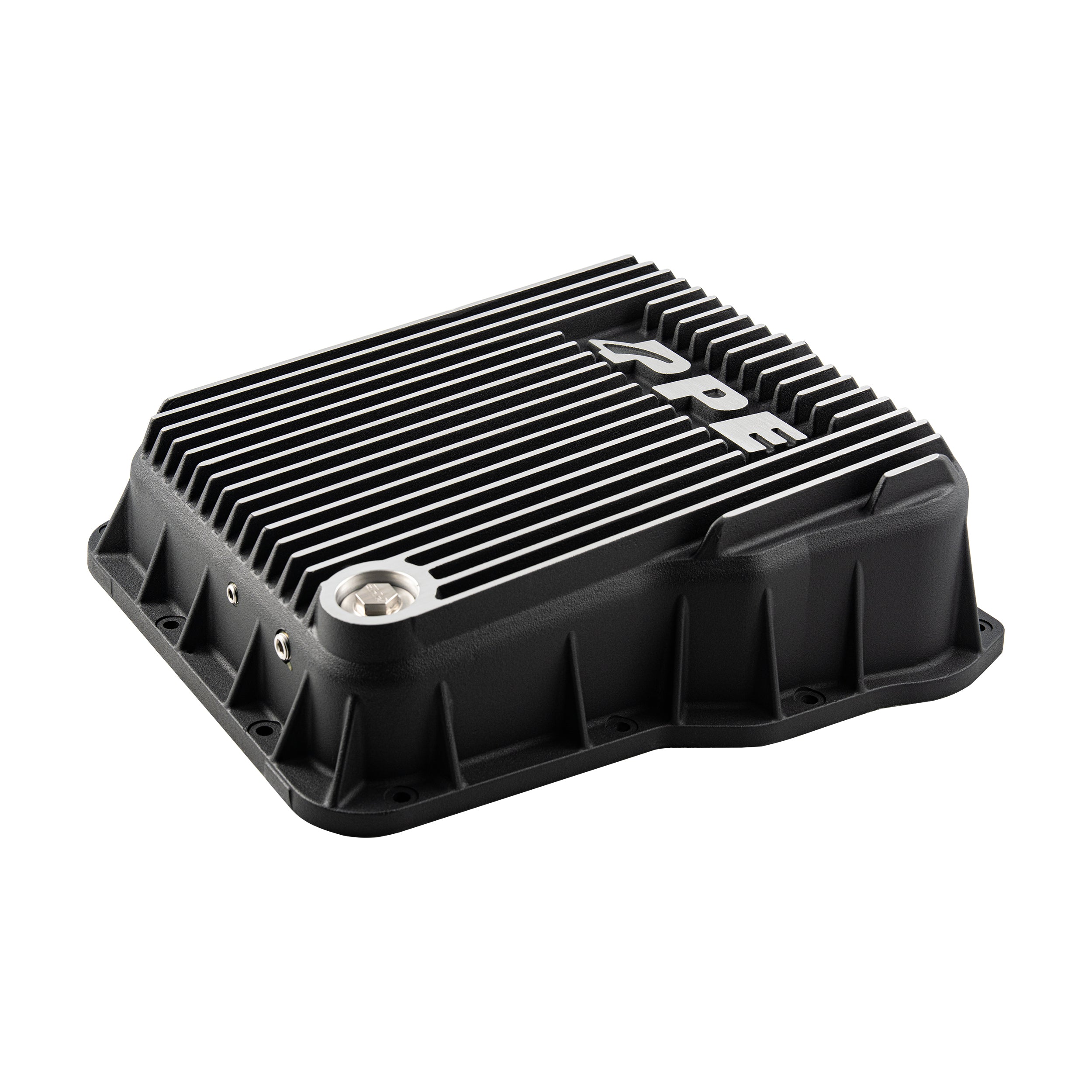

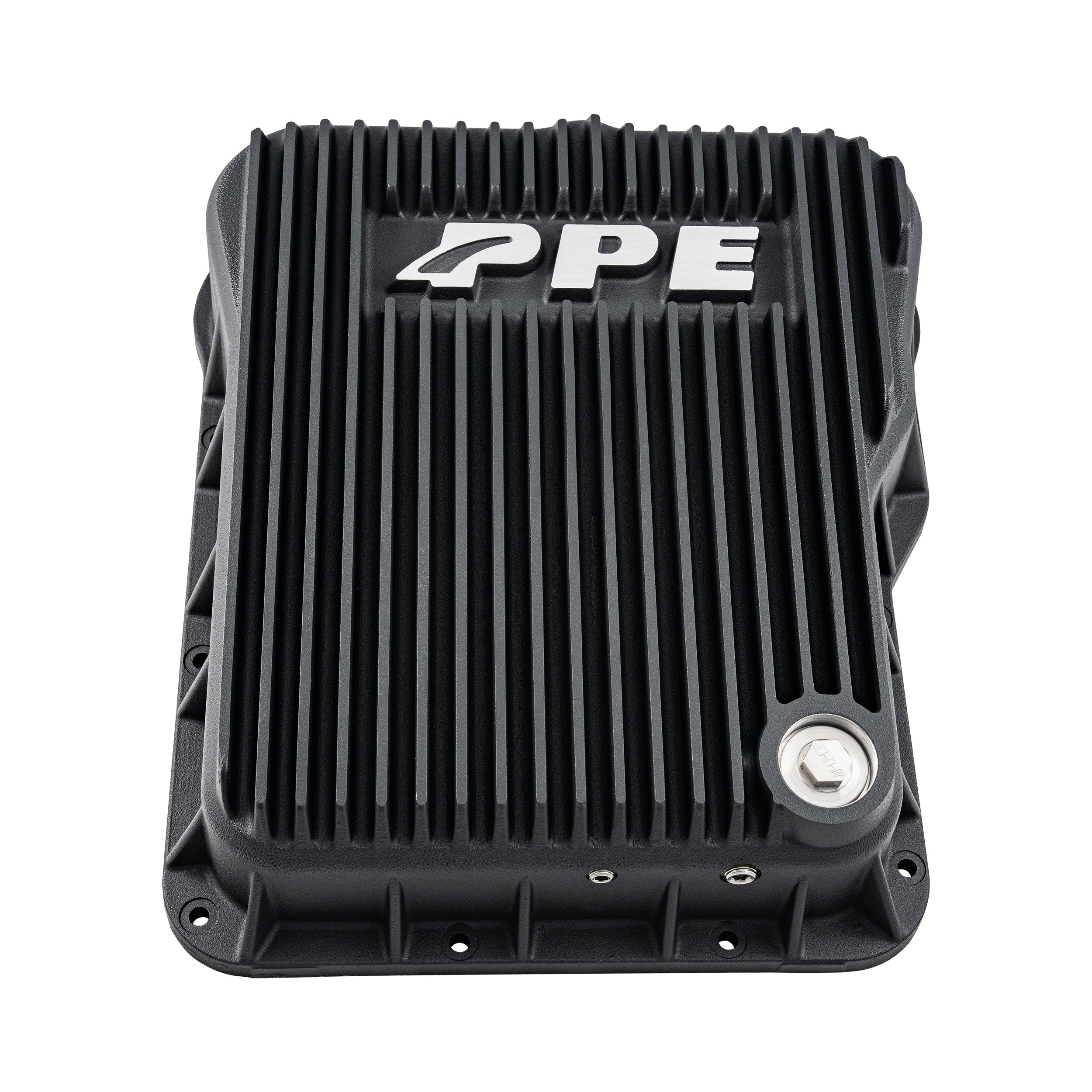

2001-2019 GM 6.6L Duramax Allison 1000/2000/2400 Heavy-Duty Cast Aluminum Transmission Pan – Standard Capacity

2001-2019 GM 6.6L Duramax Allison 1000/2000/2400 Heavy-Duty Cast Aluminum Transmission Pan – Standard Capacity

Name: 2001-2019 GM 6.6L Duramax Allison 1000/2000/2400 Heavy-Duty Cast Aluminum Transmission Pan – Standard Capacity
Brand: Pacific Performance Engineering
SKU: 128052000
Price: 269.99 USD
Availability: InStock

$269.99 In Stock Item not available

PART NUMBER: 128052000 GTIN: 840171217025

OEM P/N REFERENCE: GM 29536525

Features

Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
Cast-in gussets for additional transmission housing flange support and increased rigidity
304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
Equipped with 1/8-inch and 1/4-inch NPT ports with pre-installed NPT plugs

FREE SHIPPING FOR ORDERS OVER $100

LIFETIME LIMITED WARRANTY

30-DAY RETURNS

N/A

Description
Compatible Vehicles
Downloads

Heavy-Duty Cast Aluminum Transmission Pan, GM 6.6L Duramax

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your Allison transmission running longer, healthier, and cooler with PPE.

OEM Part Number for Reference: GM part # 24233099

PPE replacement transmission filter SKU 128058600

Files

Install Guide

Drawings

Looks great ! Really no to difficult to install

I really like the look of this trans-pan ! It was not that difficult to install ,with just a few tools and a little bit of elbow grease, pan came with new bolts and good directions . The only special tool needed is a torque wrench
