Unlock your Toyota's full potential | Enhanced cooling, Filtration, and Durability

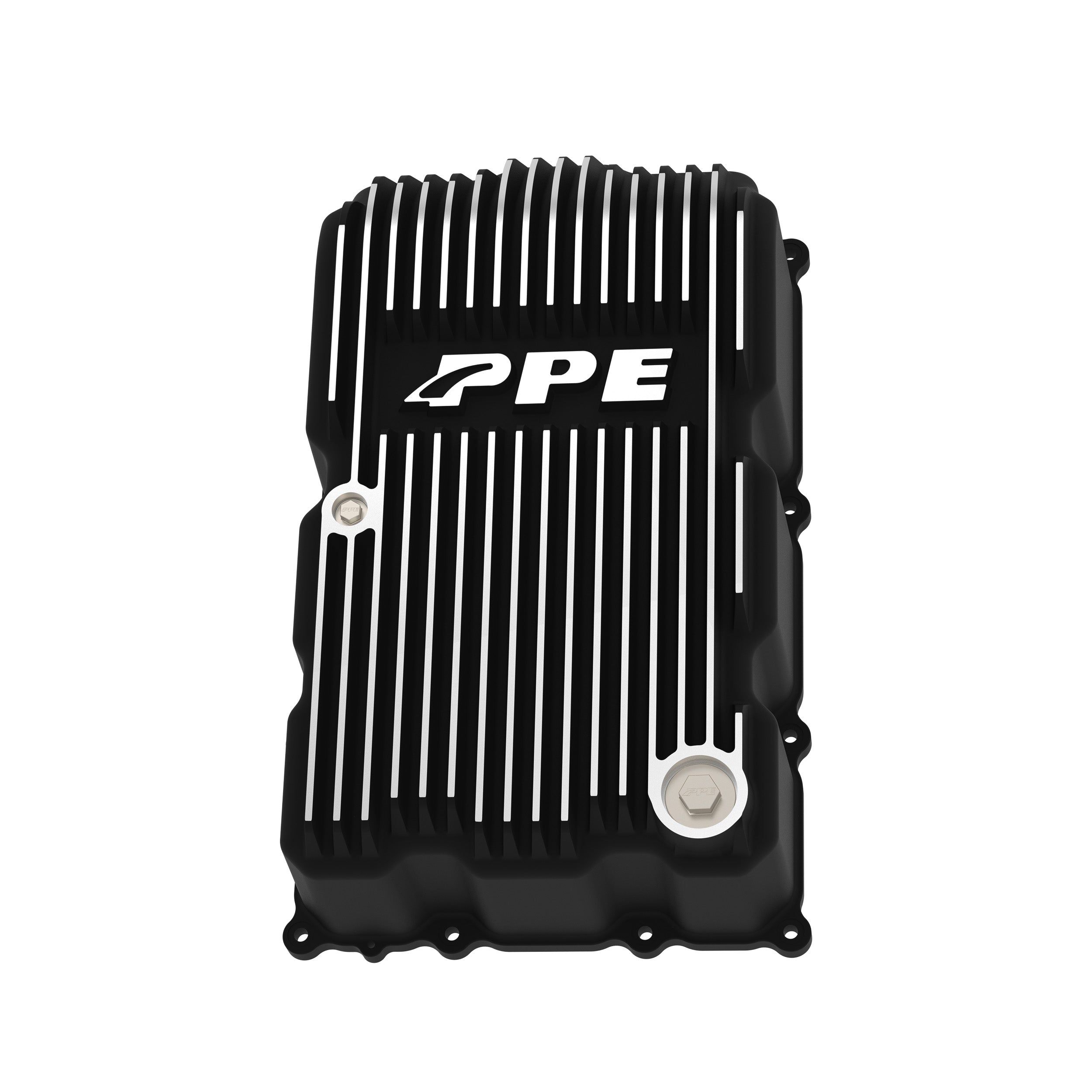

Cast Aluminum Transmission Pans
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 5 quarts of additional fluid capacity, ensuring long-lasting heat management and performance. The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance. The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance. A fluid level check standpipe ensures proper fluid level during the filling process. The drain plug and fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
2022 – 2026 Toyota Tundra, 2023-2026 Sequoia AWR10L65 Heavy-Duty Cast Aluminum Transmission Pan
FEATURES
- Durable A356.0-T6 aluminum alloy with high thermal conductivity
- Precision permanent mold casting for smooth finish and accuracy
- Tall 3/4" external fins for better cooling and impact resistance
- Deep internal baffles reduce sloshing and improve heat absorption
- 304 stainless drain plug with high-temp magnet and Viton O-ring
- Standpipe included for accurate fluid level checks
- 1/8" NPT port with pre-installed plug
- Cast-in gussets add flange support and rigidity
- Fins and baffles form a strong cross-bracing structure
- OEM filter compatible
Applications
2022-2026 Toyota Tundra 6 Cyl 3.4L Twin Turbo
2023-2026 Toyota Sequoia 6 Cyl 3.4L Twin Turbo
Product Links:
Coming soon!
2007–2021 Toyota Tundra, 2008–2022 Toyota Sequoia, 2008–2015 Toyota Land Cruiser AB60E/F Heavy-Duty Cast Aluminum Transmission Pan
FEATURES
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases fluid capacity by 2 quarts for higher thermal capacity
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Deep 5/8-inch internal baffles enhance heat absorption and minimize fluid sloshing
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional transmission housing flange support and increased rigidity
- 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Integrated standpipe ensures accurate fluid level checks during the filling process
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
- Compatible with OEM Filter
Applications
2007-2022 Toyota Tundra 5.7L Transmission Pan
Product Link:
Coming soon!
Transmission Fluid Thermal Bypass Valves
2022-2026 Toyota Tundra, 2023-2026 Sequoia 10-Speed Transmission Fluid Thermal Bypass Valve
FEATURES
- Black anodized billet aluminum
- High-temperature rated neodymium magnet service plug
- Viton O-ring seals included
- Up to 30 degrees transmission fluid temperature reduction
Applications
2022-2026 Toyota Tundra 6 Cyl 3.4L Twin Turbo
2023-2026 Toyota Sequoia 6 Cyl 3.4L Twin Turbo
Product Links:
2022-2026 Toyota Tundra, 2023-2026 Sequoia 10-Speed Transmission Fluid Thermal Bypass Valve
2024-2026 Toyota Tacoma 8-Speed Transmission Fluid Thermal Bypass Valve
FEATURES
- Black anodized billet aluminum
- High-temperature rated neodymium magnet service plug
- Viton O-ring seals included
- 20-30 degrees transmission fluid temperature reduction
Applications
2024-2026 Toyota Tacoma 2.4L
Product Links:
2024-2026 Toyota Tacoma 8-Speed Transmission Fluid Thermal Bypass Valve
MicroPure® Performance Oil Filters
Hard Anodized Billet Aluminum Oil Filter Socket - 76mm 14F
FEATURES
- Hard anodized 6061-T6 Aluminum
- Works with a 3/8-inch square drive or a 1-inch socket
- 76mm, 14-Flute
Applications
Compatible with Engine Oil Filter Socket – 76mm 14FProduct Link:
Hard Anodized Billet Aluminum Oil Filter Socket - 76mm 14F
MicroPure® Engine Oil Filter - Replaces Motorcraft FL-910S, Toyota 90915-YZZD3
FEATURES
- MicroPure® filtration with a 10-micron nominal rating
- 177 Square inches of synthetic-blend media, a 30% increase over the stock filter
- Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
- Built-in bypass valve with precision coil spring and steel-NBR poppet
- High-strength steel base plate with increased thread engagement and large oil passages
- Durable metal center tube provides excellent media support and pressure resistance
- TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
- Silicone anti-drainback valve delivers superior protection during engine start-ups
- Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
Applications
Replaces Toyota 90915-YZZD31995 - 2023 Toyota Tacoma 2.4L, 2.7L, 3.4L, 4.0L
2000 - 2012 Toyota Tundra 3.4L, 3.7L, 4.0L, 4.7L
2001 - 2010 Toyota Highlander 3.0L, 3.3L
1990 - 2010* Toyota 4Runner 2.4L, 2.7L, 3.0L, 3.4L, 4.0L, 4.7L
(2010* Only for the 2.7L)
2007 - 2009 Toyota FJ Cruiser 4.0L
2001 - 2009 Toyota Sequoia 4.7L
1984 - 2009 Toyota 4Runner 2.4L, 2.7L, 3.0L, 3.4L, 4.0L, 4.7L
2003 - 2009 Lexus GX470 4.7L
1998 - 2007 Lexus LX470 4.7L
1996 - 2007 Toyota Land Cruiser 4.5L, 4.7L
1993 - 1998 Toyota T100 2.7L, 3.0L, 3.4L
1979 - 1995 Toyota Pickup 2.2L, 2.4L, 3.0L
Product Link:
MicroPure® Engine Oil Filter - Replaces Motorcraft FL-910S, Toyota 90915-YZZD3
